250 Series

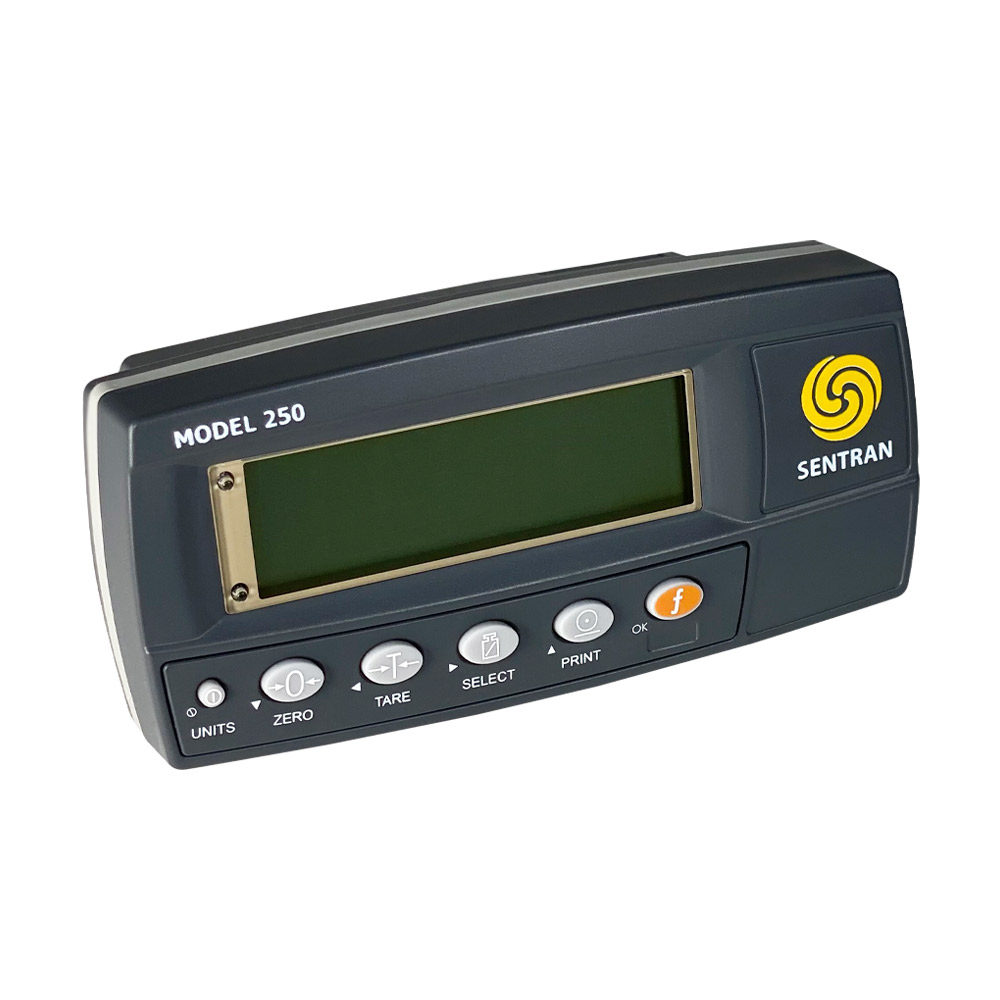

The 250 Series Digital Indicator is an accurate multi-purpose high response instrument for applications that require versatility with connected power or battery operation. The 250 Series utilizes a 24-Bit (8,000,000+ internal division) A/D converter coupled with a backlit 6–Digit LCD display with 30,000 display divisions. The 250 Series enclosure is ABS plastic with a protection class of IP65. The 250 Series can be used in three mounting configurations: Desktop (or handheld) for convenient portability with a fixed display viewing angle; universal mount for fixed or wall mounting and adjustable display viewing angle; and panel mount for control panel applications. The 250 Series is DC powered using either four AA batteries (included) that provide up to 40 hours of continuous operation or connected 7-24 VDC. An included AC power adapter is convenient for 115 VAC operation. The Model 250 Digital Indicator is easily configurable via the keypad. The handy (f) function key can be configured to select UNITS of measure, HOLD a weight or force reading, display an absolute PEAK value, COUNT parts or stabilize a moving mass with the LIVEWT function. The 250 Series Indicator is ideal instrument for force and weight measurement where accuracy and versatility are required.
