255 Series
- 23-Key Alpha-numeric Keypad
- Four Line Backlit LCD Display
- Analog Output Option
- 8 Solid State Relays Option
- 4 Momentary Remote Inputs Option
- Ethernet/Profibus DP
- Alibi Data Storage
- RS232/485 Serial Interfaces
- Stainless Steel Enclosure Option
- Panel, Wall, Column, Desktop Mount
- PC Configure Via View Software
- IP 65/66

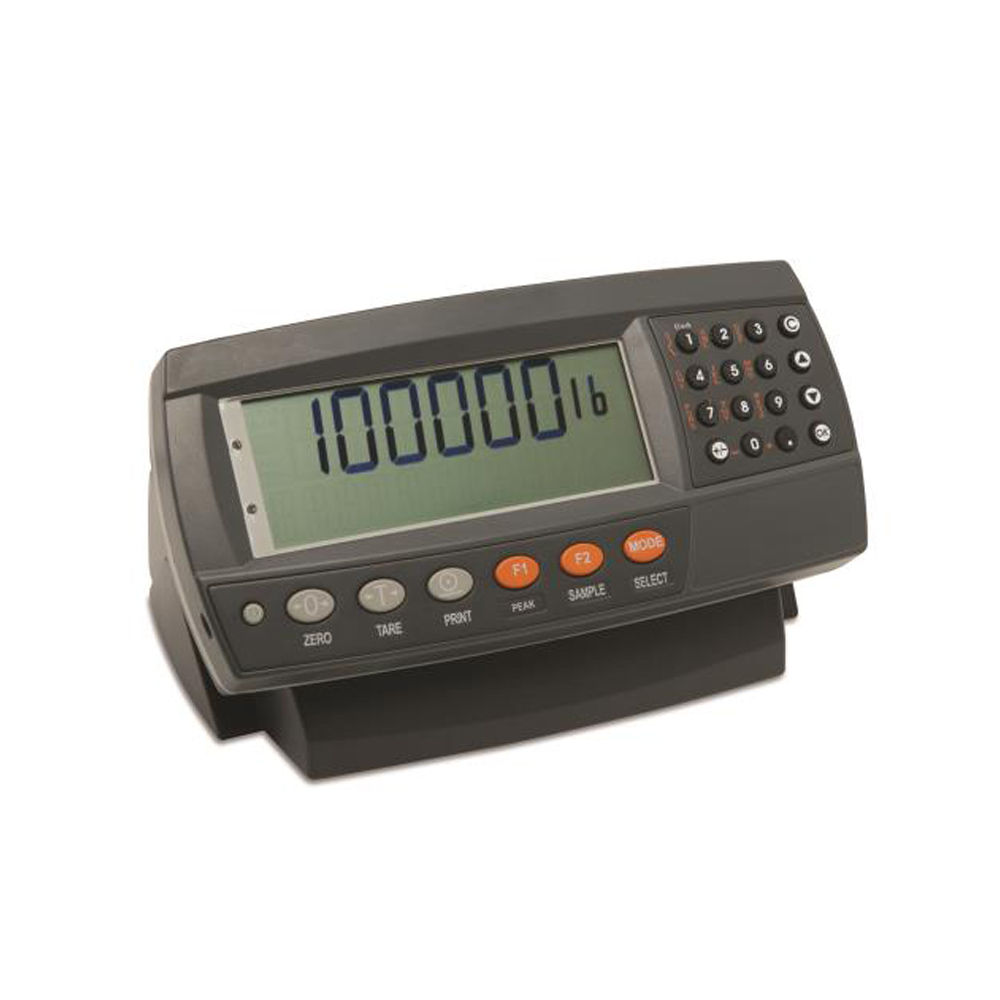

This multi-purpose digital indicator is perfect for the application that requires expanded control capabilities coupled with fast, accurate readout of measured values. The Model 255 can be configured via the 23-key keypad, through the bi-directional RS 232 port, or via the IR-Link with Sentran’s View PC software. The large, backlit LCD display provides (4) lines of intelligent alphanumeric data to facilitate ease of setup and operation, and presentation of systematic data. Featuring the latest 24-bit Sigma-Delta A/D converter, Linear Phase Response FIR Digital Filtering Technology, and displayed values of up to 100,000 digits makes very high resolution measurements more reliable than ever before! As a control interface or dedicated process controller, the model 255 offers Ethernet and Profibus DP, a 4-20mA/0-10VDC Analog Output Option, (8) Setpoints Option, (8) Solid-State Relays Option, and a (4) Momentary Contact Remote Inputs Option. Three assignable function keys can be configured to select Printing, Unit Switching, Counting, Manual Hold, Peak Hold and Totalizing (Accumulating). The Model 255 is DC powered (a 110-240 VAC power adapter is included). This multi-faceted indicator is adaptable to your specific mounting requirements, offering panel mounting, stainless enclosures, desktop or optional stainless steel brackets for universal mounting.
