JA Series
Price range: $650.00 through $750.00
- Field Selectable Input and Output
- 115 VDC or 24 VDC Power Options
- 0-25 mA: 0-2 mA, 0-20 mA, 4-20mA Outputs
- 0-1 to 0-10 VDC, ±1 to ±10 VDC Outputs
- Selectable 0- 5 mV/V to 0-40 mV/V Input
- 11 Pin Socket Base, DIN Rail Mountable
- Powers Up to Four 350 ohm Transducers
- Fine Tune Adjustment of Zero and Span
- 0.1% Linearity
- Selectable Excitation: 10 VDC Maximum
- Remote Sense Capable

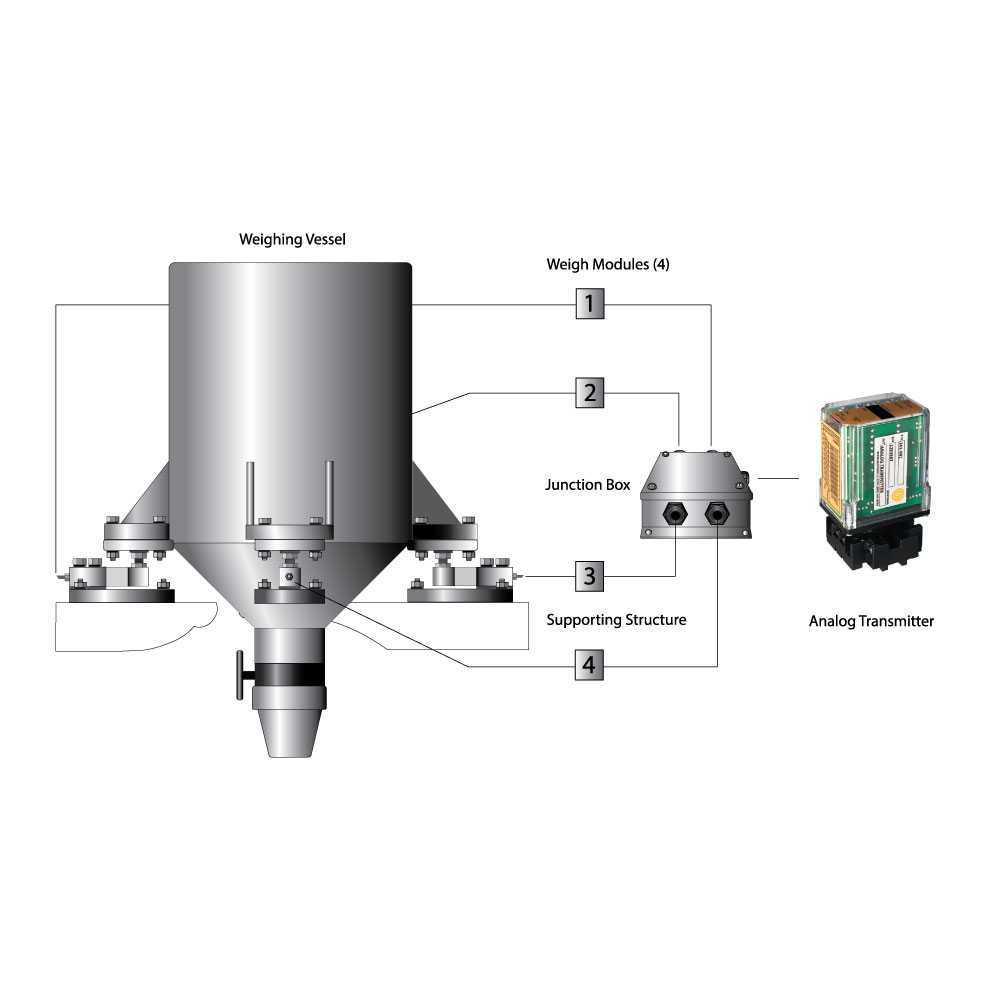

The JA Series is a powerful and versatile measurements grade analog transmitter/amplifier featuring selectable output formats for both voltage and current and is compatible with single or multiple summed transducers. Input, output, excitation and zero offset parameters are field configurable allowing for easy and convenient set up and calibration. Zero offsets are adjustable up to 100% of the span range. The JA Series utilizes a linear optical isolation of the input, output, and power that effectively eliminates ground loop potential. The JA Series is excellent for electrically noisy industrial environments and is available in both AC and DC power options. Other features include fine adjustment with no interaction between zero and span and remote sensing. The JA Series is an ideal choice for industrial applications where a transmitter/amplifier with a versed range of field selectable inputs and outputs is required.
| Operator Interface | |
|---|---|
| Status Annunciator | 2; Red LED for output; Green LED for input; Variable intensity. |
| Functional Test Pushbotton | Adjustable to 0-100% of calibrated range using integral potentiometer; Imposes preadjusted signal on the output, independent of any input signal. |
| Calibration Method | Range selection; Known signal input; Fine tuning potentiometer; Non- interactive zero and span signals eliminate “crosstalk” influences. |
| Adjustments | Integral potentiometers & switches; Zero offset (deadload); Transducer input ranging; Transmitter output ranging; Excitation voltage. |
| Functional Parameters | |
|---|---|
| Linearity | Better Than Or Equal To 0.1% Full Scale |
| (FS) Measurement Response Rate: | 70ms typical; 10ms available (Optional) |
| Span Input Range: | Field Selectable (Rotary Switches): See Table Below |
| Zero Offset | Field selectable; 0-100%; 15% increments |

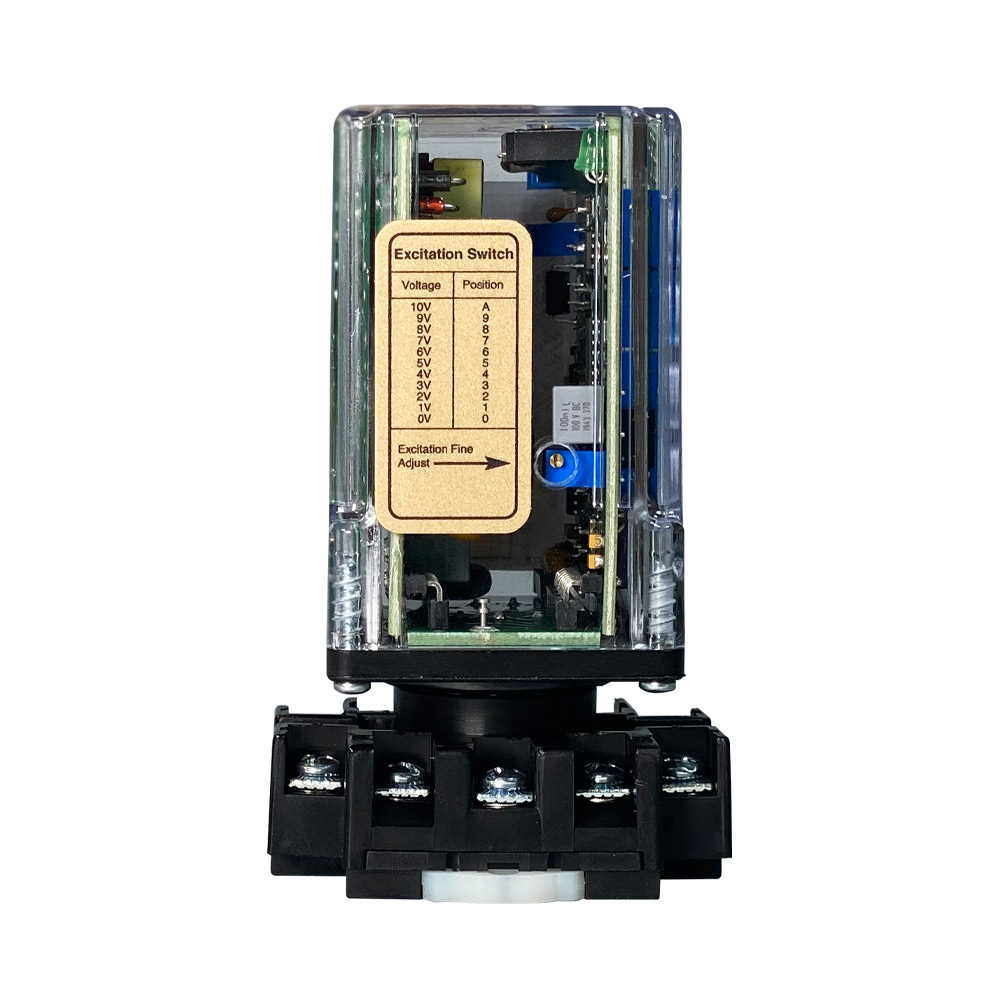

| Bridge Excitation Voltage: | Field selectable; 1-10 VDC; 1 volt increments; Fine adjustment of ±5% |
| Excitation Current Rating | 120 mADC @ 10VDC; Powers up to (4) 350 Ohm and up to (8) 700 Ohm |
| Transducers Excitation Stability: | .005%/°F (.01%/°C) |
| Common Mode Rejection: | 100dB (minimum) |
| Input Impedance: | 200K (typical) |
| Isolation: | 2000V RMS (minimum) |
| Remote Sense Lead Compensation: | Better Than 0.01%/1 Ω Change in Lead |
| Resistance Power: | JA1: 115 VAC ±10% @ 50/60Hz; 2.5W (maximum) JA2: 9-30 VDC @ 2.5W JA3: 230 VAC ±10% @ 50/60Hz; 2.5W (maximum) |
| Environmental | |
|---|---|
| Operating Temperature Range: | -10° To +60 °C / 14° F To |
| Temperature Stability: | Better Than 0.02% of Span/°C |
| Enclosure Construction: | High impact polycarbonate |

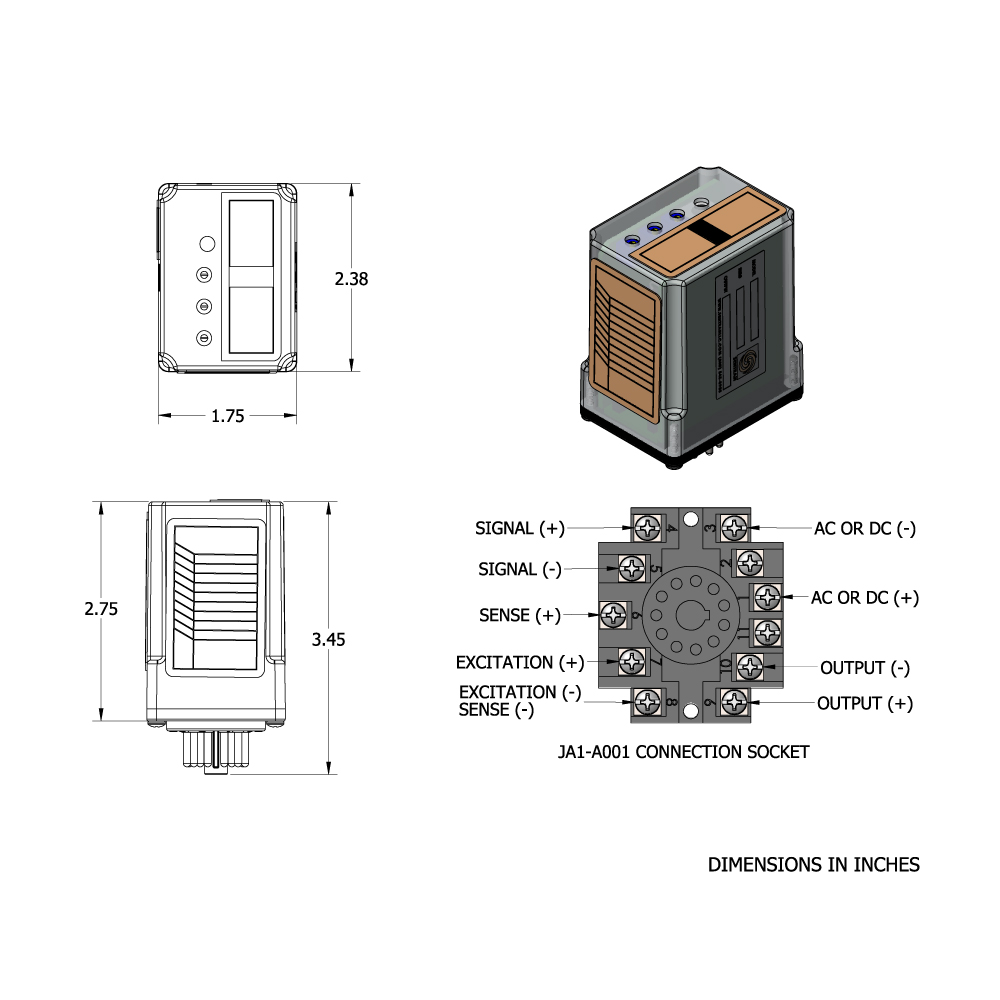

| Enclosure Dimensions: | 2.75” high X 2.38” wide X 1.75” deep |
| Weight: | 6 ounces |
| Warranty: | One year; Limited |
| Output | |
|---|---|
| Output Ranges: | Field selectable |
| Output Capability: | Field Selectable (Rotary Switches): See table |
| Options | |
|---|---|
| Fast Response: | 10ms response time |
| Other Options: | 11 Pin Socket; 35 mm DIN (with screw mount, 2X 4.5 mm Holes on 52 mm Spacing) |
