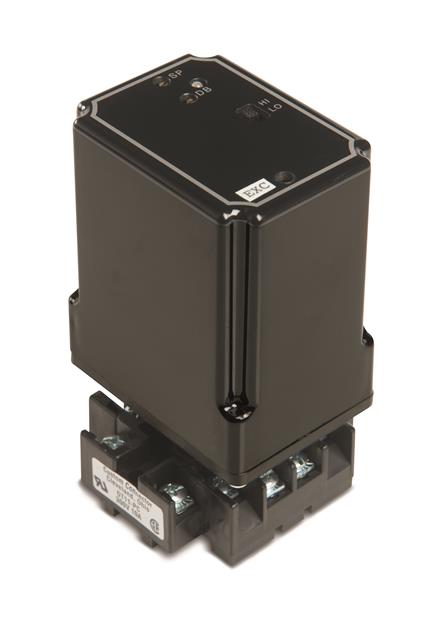

JD Series
Features
- Compatible With Single and “Summed” Transducer Applications
- Span Ranges of 0-1 to 0-200 mV/V
- Output Voltage Ranges of 0-1 to ± 10 VDC
- Output Current Ranges of 0-20 or 4-20 mA
- Drives up to 1000 Ohm Loop Resistance
- No Interaction Between Zero and Span
Overview
Specifications
Dimensions
Wiring Color Code
Installation Examples
Downloads
Overview
The JD Series is designed as a dedicated, measurements grade analog transmitter featuring selectable output formats for voltage or current. The JD Series is compatible with single or multiple “summed” transducer applications.
