MA
- 100 to 20,000 lbs. Capacities
- 0.02% Accuracy Class – NTEP Grade
- Steel, Stainless Steel or Hermetically Sealed Stainless Steel
- PTFE-Lined Ball Joints
- Nylon Insulataion Washers
- Braided Grounding Strap
- IP66/IP67/IP68 Environmental Sealing
- Output Matched for Single or Multiple Load Cell Applications
- Two Year Warranty

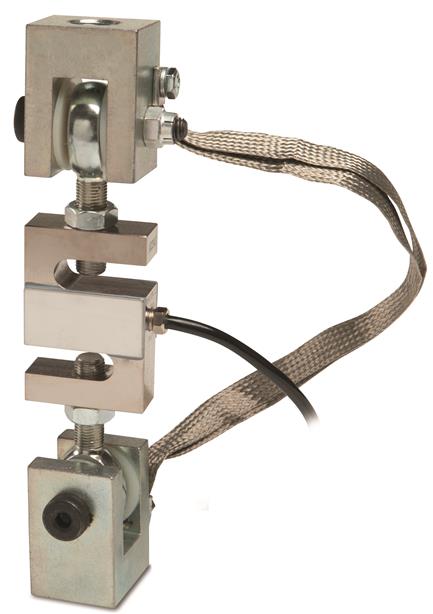

The MA Series is a complete weigh module available in mild steel (MA1), stainless steel (MA3) or hermetically sealed stainless steel (MA4), The companion ZB Series load cell’s integrated loading brackets reduce sensitivity to off-center loading effects, while making the load cell readily adaptable to in-line measurements. This load cell is available as Hostile Environment Sealed (IP66- High Pressure Jets), Harsh Environment Sealed (IP67-Limited Immersion) and Hermetically Sealed (IP68-Continuous Immersion) by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal components. The output signal is calibrated to a close tolerance to facilitate in situ interchangeability and multiple load cell summing applications. The integral premium, instrumentation grade cable features a durable polyurethane-jacket over a tinned-copper braided shield for superior mechanical protection and to minimize the unwanted electrical effects of RFI and EMI. The MA Series is it an ideal choice for measurements in structural analysis, manufacturing, inventory, monitoring, process applications and for general force measurements and weighing situations where a dependable, versatile, high performance measurement solution is needed.
