MB

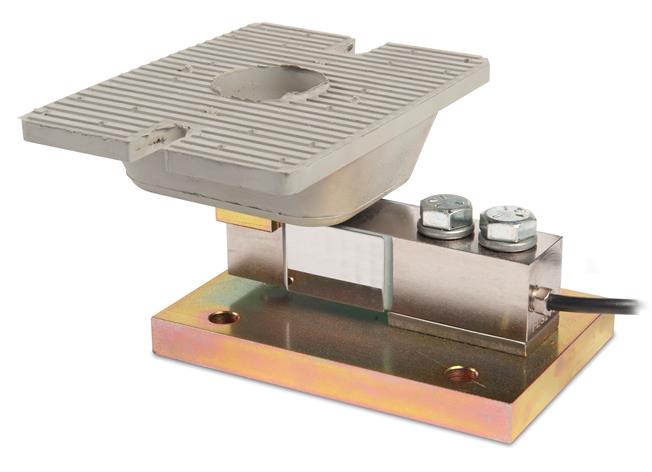

The MB Series weigh module is available in steel (MB1), stainless steel (MB3) or hermetically sealed stainless steel (MB4). The MB Series is designed to accurately measure compression loads in capacities ranging from 0-500 lbs. to 0-2,500 lbs. The robust, rectangular shear beam design readily tolerates angular, eccentric and side loading effects, with minimal sensitivity to these anomalies. The neoprene load receiver reduces the effects of shock loading, vibration and thermal expansion, and accommodates minor misalignment with vessel supports. This load cell is available as Hostile Environment Sealed (IP66-High Pressure Jets) or as Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal components. The output signal is calibrated to a close tolerance to facilitate in situ interchangeability and multiple load cell summing applications. The integral premium, instrumentation grade cable features a durable polyurethane-jacket over a tinned-copper braided shield for superior mechanical protection and to minimize the unwanted electrical effects of RFI and EMI. The MB Series is an ideal choice for reactor, mixer and blender weighing.

Download Data Sheet PDF
