MQ4 Series

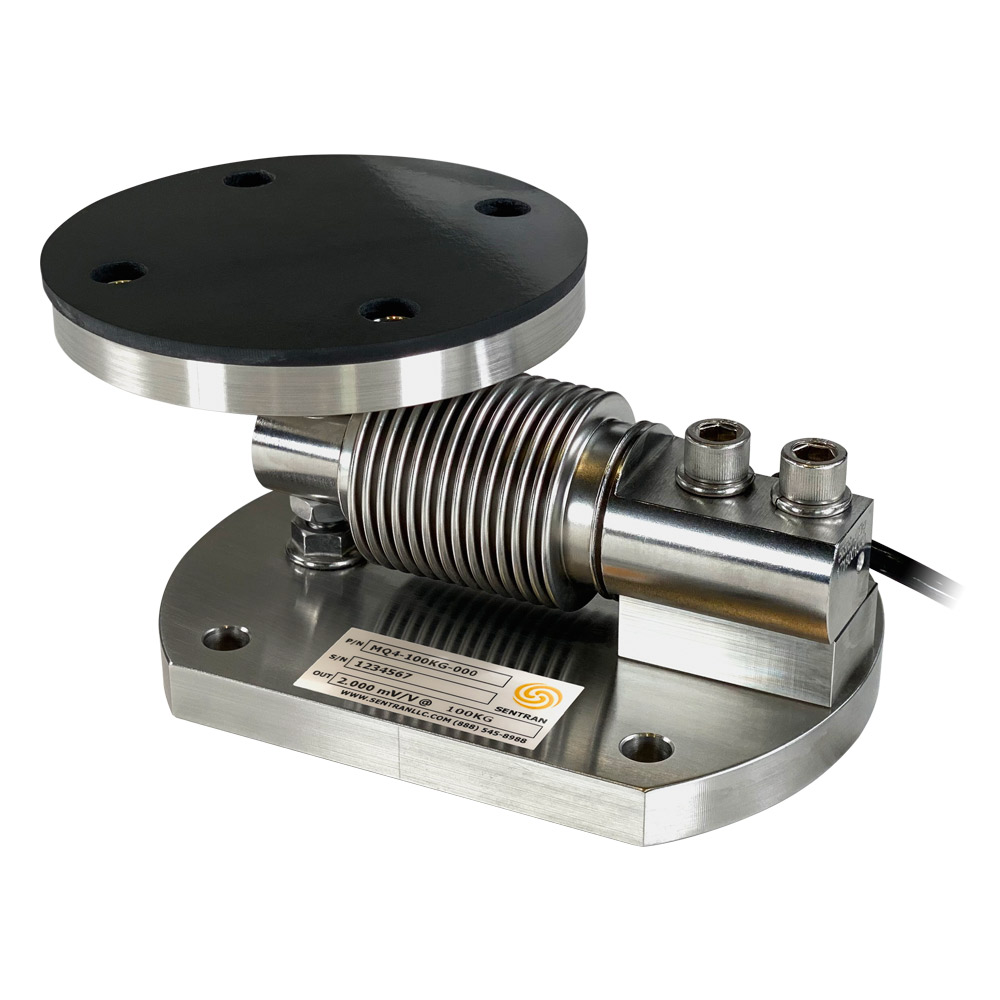

The MQ4 Series is a high performance weigh module constructed of stainless steel. The MQ4 utilizes the VE4-C Series dual-guided cantilever beam load cell that readily tolerates angular, eccentric, and side loading effects, with minimal sensitivity to these anomalies. The MQ4 Series is designed to accurately measure compression forces for applications ranging from 0-5 KG to 0-500 KG. The MQ4 Series includes factory adjusted integral overload protection for both compression and tension (uplift), yielding a safe overload rating of up to 500% of rated capacity. The included Viton LRP (Load Receiver Pad) promotes equal load distribution between adjacent weigh modules and reduces the effects of shock loading and vibration. The MQ4 Series load receiver plate articulates 3° in all directions, allowing intrinsic planar misalignment compensation, accommodating vessel support alignment, sloped flooring, thermal expansion/contraction, and other installation variables. This easy-to-install weigh module mounts directly to the floor or structural supports, and is completely self-checking, including uplift constraint with accurate (tension) measurement. The MQ4 Series weigh module is Harsh Environment Sealed to IP68, incorporating a welded bellows seal to protect all internal components. The integral premium, instrumentation grade cable features a durable PVC jacket over a tinned-copper braided shield for superior mechanical protection and to minimize the unwanted electrical effects of RFI and EMI. The attributes of the MQ4 Series make it an ideal choice for measurement in C-I-P (Clean in Place) process, Pharmaceutical, Industrial, precious material handling, and weighing situations where a versatile high performance, low capacity weigh module solution is required.
