NA2 Series
$160.00
- 4 Channel: 2 to 4 Channel Summing
- “Corner Adjustment” Trimming For Balancing
Variable Load Cell Signals - Reinforced ABS Enclosure
- NEMA 4/4X Sealing (IP68)
- Remote (6-wire) Sensing Capable
- Cable Grips Accept 0.175″- 0.300″ OD
- Fine Tune Channel Adjustment
- No Interaction Between Zero and Span
- Positive Contact Terminal Connections

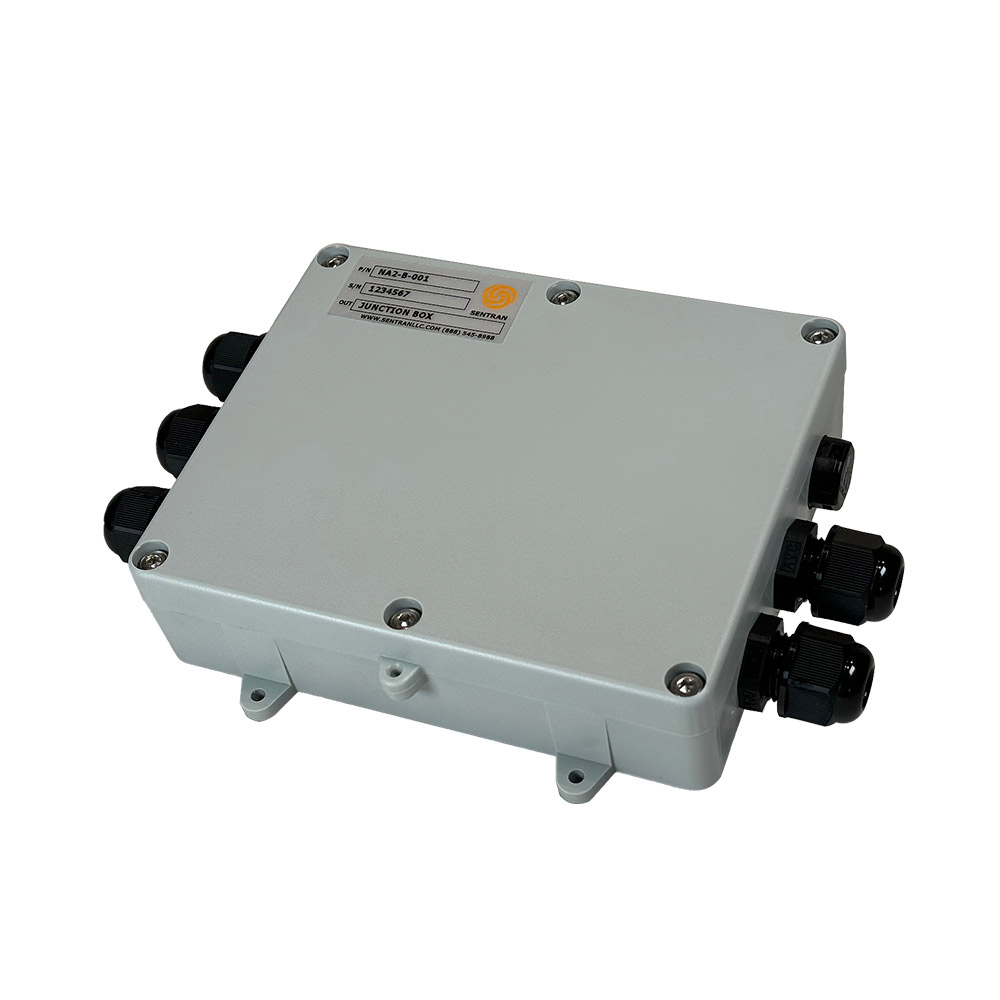

The NA2-B Series Summing/Junction Boxes is available in 4 load cell input configurations.
Functionally, the load cell inputs are multiplexed electrically in a parallel network using
discrete, highly stabilized components for isolation and signal adjustments for each channel

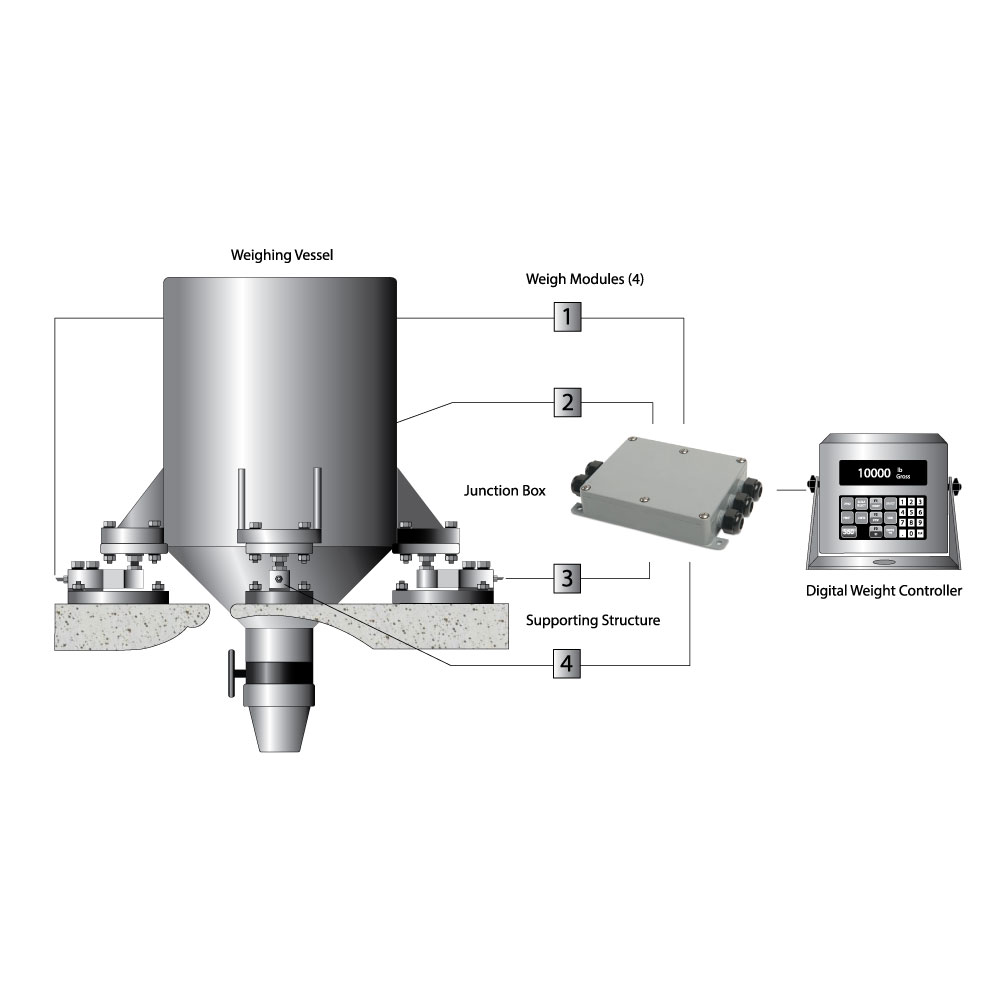

individually, with no interaction between channels. The NA2-B Series active summing capabilities
distributes supplied excitation voltage to each load cell/transducer and sums the resulting
signal for transmission to control instrumentation. The “home run” cable is connected between
the NA2-B Series and the control instrumentation that supplies excitation voltage and accurate
processing of the resulting load cell signals. Positive contact terminal connections provide
secure clamping of conductors, ensuring long term stability of measured signals. The PCBA is
conformal coated to protect it from the effects of condensation and corrosion. All NA2-B Series
Summing/Junction Box enclosures are Hostile Environment Sealed to NEMA 4/4X, IP68. A LTW
breather port helps prevent condensation.
| NA2-B | |
|---|---|
| Cable Fittings: | (4) Nylon cable cord grips for load cell cable O.D. of 0.175” (4.4 mm) to 0.300” (7.6 mm) (1) Nylon cable cord grip for instrumentation cable O.D. 0.175” (4.4 mm) to 0.300” (7.6 mm) |
| Connectors: | 14 AWG maximum wire size; Screw clamping; 45° interface |
| Trimming: | Discrete channel signal trimming using isolation resistors and limiting resistors |
| Potentiometers: | (4) 100K ohm Multi-turn |
| Enclosure: | Reinforced ABS; NEMA 4/4X, IP68; Wash down |
| Circuit board: | 4.0” x 3.0” (101.6 mm X 76.2 mm) |
| Options: | 6-conductor cable; Desiccant packs; Replacement PCBA; Cable fittings/cord grips |
| Datasheets |  NA2-B-DS.00.pdf |
| Step Files |  NA2-B-001-X1-STEP.step |
