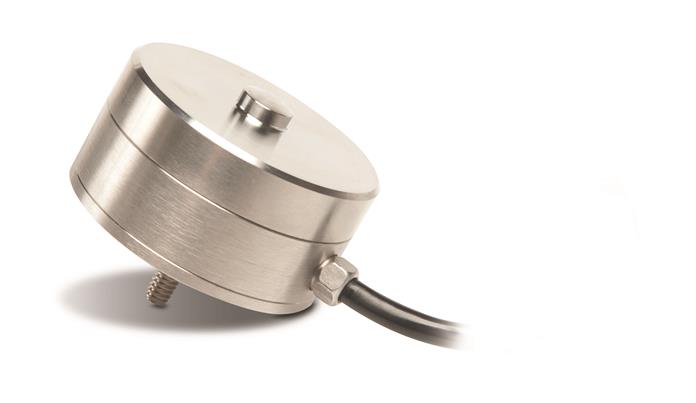

PF
- 5,000 to 100,000 lbs. Capacities
- Compact Low Profile Design
- High Output – Low Deflection
- 0.1 Accuracy Class
- High Frequency Response
- IP67 Environmental Sealing
- FM Approved
- Alloy Tool Steel Construction
- Two Year Warranty
The PF Series is a high performance, bonded foil strain gage load cell constructed of stainless steel. The PF Series is designed to accurately measure compression loads in capacities ranging from 0-100 to 0-5000 lbs. The integrated sensing diaphragm and precision ground base combine to produce excellent performance, superior environmental integrity and reduced sensitivity to off-center and side loading effects. The PF Series features an integrated overload protection mechanism rated to 500% of capacity. This load cell is Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal components. The integral premium, instrumentation grade cable features a durable polyurethane-jacket over a tinned-copper braided shield for superior mechanical protection and to minimize the unwanted electrical effects of RFI and EMI. The attributes of the PF Series make it an ideal choice for measurements in the laboratory, manufacturing and process applications where a compact, rugged low profile load cell solution is needed.
