PH3-A Series
Price range: $2,650.00 through $5,445.00
- 20K LB to 200K LB Capacities
- 0.10% Accuracy Class
- 3 mV/V Full Scale Output
- MS 3102E-14S-6P Connector
- Low Profile Size
- IP67 Environmental Sealing
- Stainless Steel Construction
- Robust Shear Web Design
- Universal – Tension and Compression
- Optional Pull Plate Available

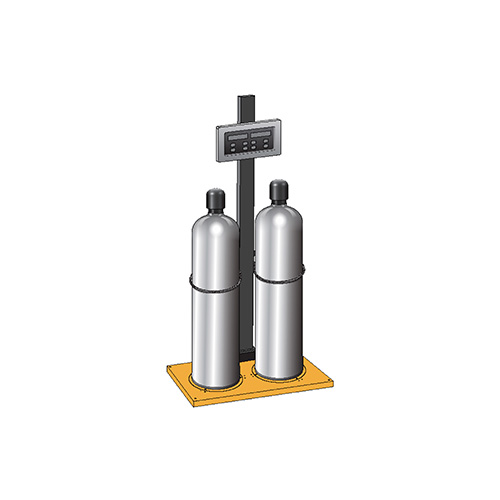

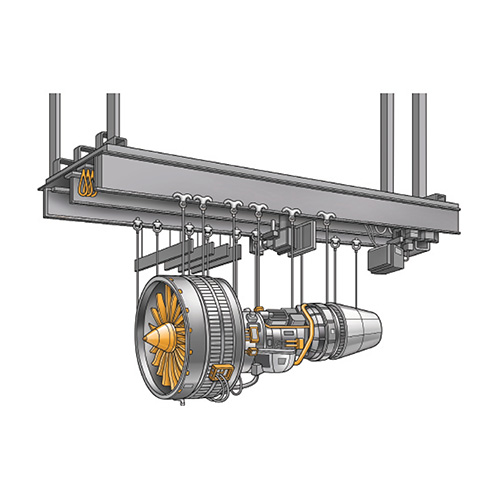

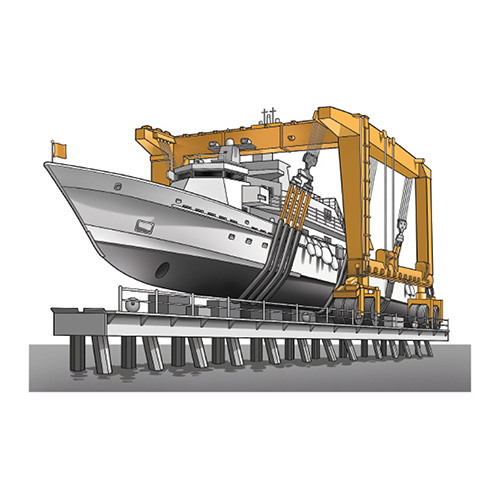

The PH3-A Series is a low profile high performance load cell constructed of heat treated stainless steel. The PH3-A is designed to accurately measure tension and compression forces in capacities ranging from 0-20K LB to 0-200K LB. The robust shear web sensing design, coupled with an enhanced strain gage arrangement, produces excellent performance in a low profile package that readily tolerates moments induced by angular, eccentric, or off-center loading with minimal sensitivity to these extraneous loads.The inherent low deflection of the PH3-A Series yields a high dynamic response and superior output resolution for a wide range of applications. This load cell is Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary multi-redundant barriers uniquely integrated to protect all internal components. A MS3112-10-6P (20K to 50K) or MS3102E-14S-6P (75K to 200K) connector is standard. Mating connectors with variety of cable lengths are available. The attributes of the PH3-A make it ideal for industrial applications as well as for measurements in the laboratory, structural testing, materials testing, and general force measurements where a low profile precision load cell solution is required.
| Performance | |
|---|---|
| Rated capacities ⁽¹⁾ (LB) | 20K, 30K, 50K, 75K, 100K, 150K, 200K |
| Rated Output (FSO) | 3 mV/V |
| Output Tolerance | +/- 0.5% |
| Combined Error Band | ≤ 0.10 % FSO |
| Non-Linearity | ≤ 0.10 % FSO |
| Hysteresis | ≤ 0.10 % FSO |
| Non-Repeatability | ≤ 0.03 % of load |
| Zero balance | ≤ 1.0 % FSO |
| Creep (30 Minutes) | ≤ 0.03% of Load |
| ⁽¹⁾ (“K” = thousand) | |
| Electrical | |
|---|---|
| Input Impedance | 375 ohms (Nominal) |
| Output Impedance | 350 ohms (Nominal) |
| Insulation Resistance | >5000 Megohms @ 50VDC |
| Excitation Voltage | 10 V AC/DC (15 V maximum) |
| Cable Color Code | + Excitation (Pin A) + Sense (Pin B) – Excitation (Pin C) – Sense (Pin D) – Signal (Pin E) + Signal (Pin F) |
| Mechanical | |
|---|---|
| Material | Stainless Steel |
| Finish | Bead Blast |
| Safe Overload | Compression 150% FSO Tension 150% FSO Side Load 30% FSO |
| Ultimate Overload | Compression 300% FSO Tension 300% FSO Side Load: 50% FSO |
| Deflection | See Dimensions Tab |
| Weight | See Dimensions Tab |
| Environmental | |
|---|---|
| Temperature, Operating | -50 to +175 °F (-45 to +79°C) |
| Temperature, Compensated | 14 to +104 °F (-10 to +40°C) |
| Temperature, Storage | -50 to +175 °F (-45 to +79°C) |
| Temperature Effects | Zero < 0.0015% FSO/°F < 0.0026% FSO/°C |
| Temperature Effects | Output < 0.0015% of Rdg./°F < 0.0026% Rdg./°C |
| Sealing | IP67; Multi-redundant; Limited Immersion Tolerance |

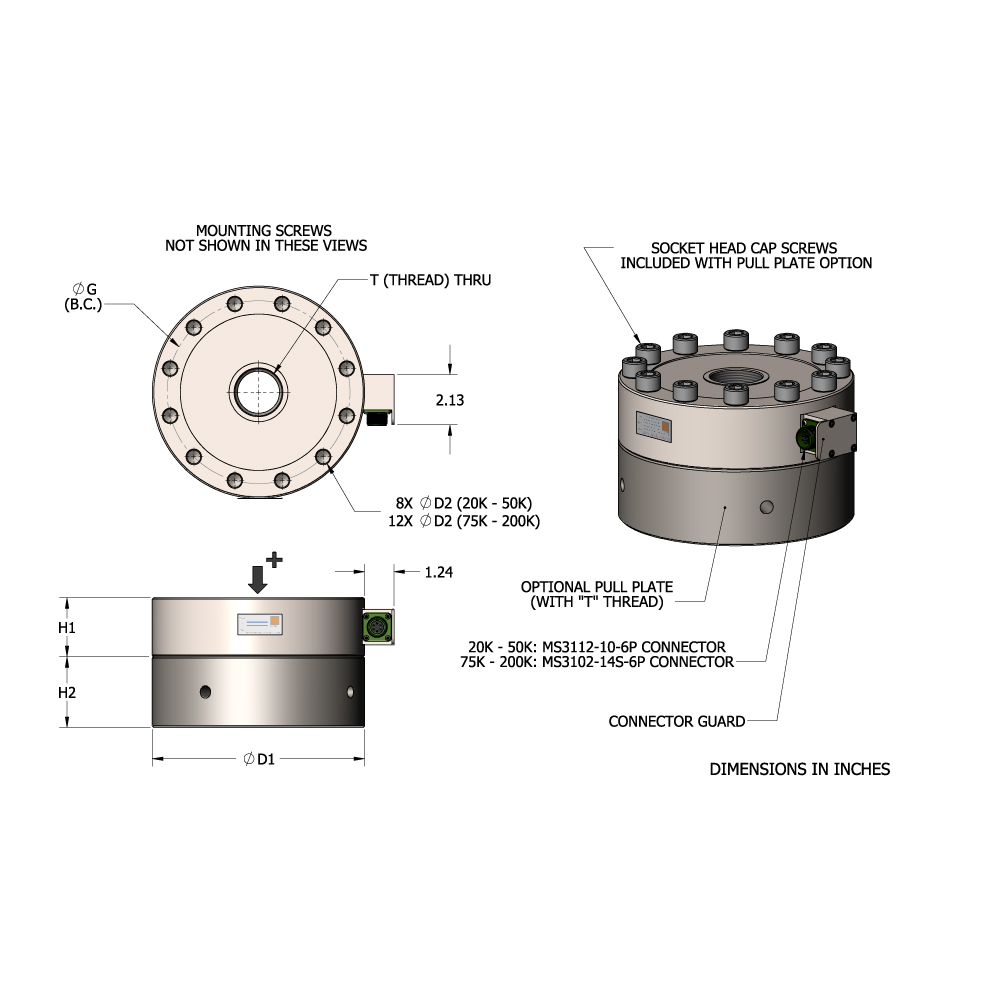

| CAPACITY (LB) | D1 | D2 | H1 | H2 | G | T (THREAD) | RECOMMENDED BOLT TORQUE | DEFLECT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 20K, 30K, 50K | 6.00 | 0.53 | 1.80 | 1.80 | 4.88 | 1 1/2 – 12 UNF-2B | 100 FT-LBS | 0.004 | 10.0 LB |
| 75K, 100K | 9.00 | 0.66 | 2.50 | 3.00 | 7.75 | 2-12 UN | 170 FT-LBS | 0.006 | 30.0 LB |
| 150K, 200K | 11.00 | 0.78 | 2.50 | 3.50 | 9.50 | 2 1/2-12 UN | 300 FT-LBS | 0.010 | 47.0 LB |
