PM3-TC Series
Price range: $1,490.00 through $1,990.00
- 5K LB to 50K LB Capacities
- 0.15% Accuracy Class
- 2 mV/V Full Scale Output
- M12 Connector with 17.5 FT PUR Cable
- Low Profile Size
- IP67 Environmental Sealing
- Stainless Steel Construction
- Enhanced Diaphragm Design
- Universal – Tension and Compression

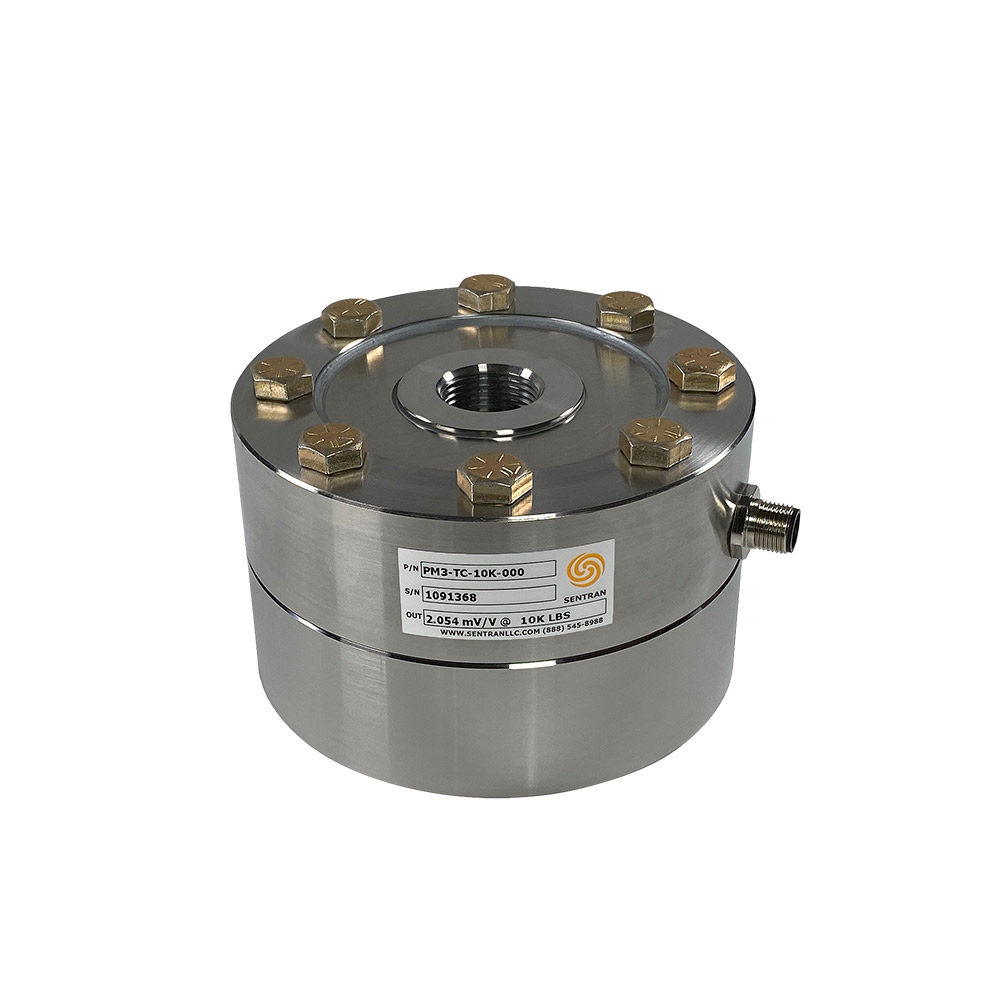

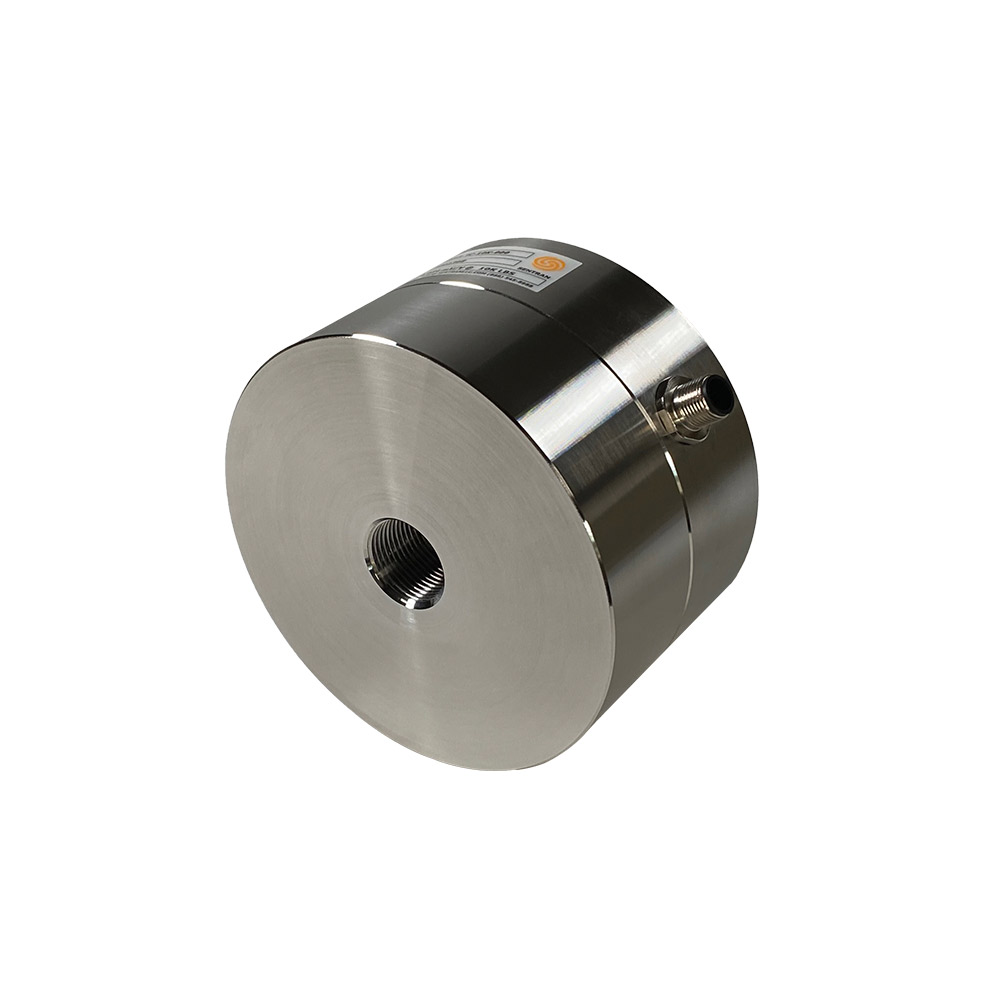

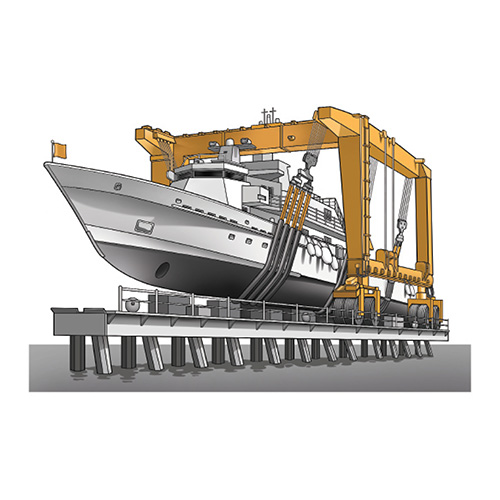

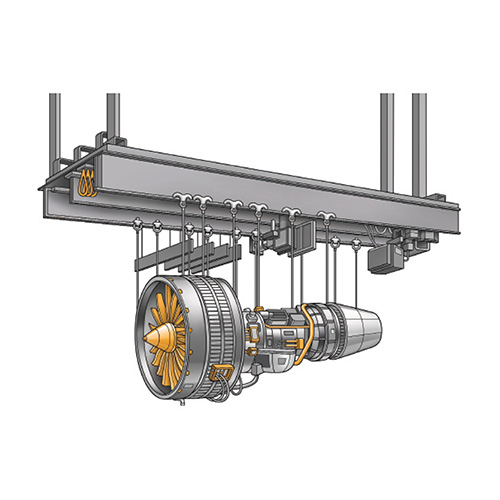

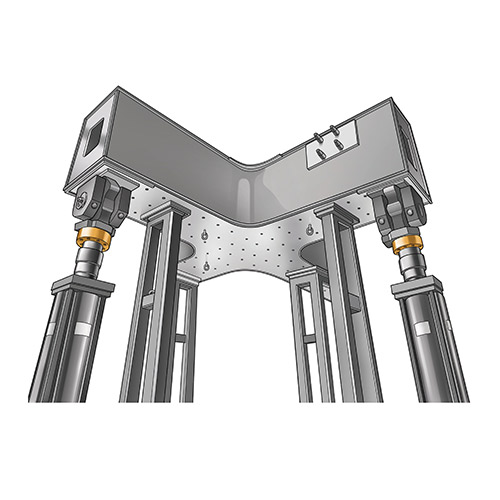

The PM3 Series is a low profile high performance load cell constructed of heat treated stainless steel. The PM3 is designed to accurately measure tension and compression forces in capacities ranging from 0-5,000 LB to 0-50,000 LB. The diaphragm sensing design, coupled with an enhanced strain gage arrangement, produces excellent performance in a very low profile package. The inherent low deflection of the PM3 Series yields a high dynamic response and superior output resolution for a wide range of applications. This load cell is Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary multi-redundant barriers uniquely integrated to protect all internal components. A M12 connector is standard. A mating connector with 16.5 FT integral polyurethane cable is included. The attributes of the PM3 make it ideal for measurements in the laboratory, structural testing, materials testing, and for general force measurements where a low profile precision load cell solution is required.
| Performance | |
|---|---|
| Rated capacities ⁽¹⁾ (LB) | 5K, 7.5K, 10K, 15K, 20K, 30K, 50K |
| Rated Output (FSO) | 2 mV/V |
| Output Tolerance | Nominal |
| Combined Error Band | ≤ 0.10 % FSO |
| Non-Linearity | ≤ 0.10 % FSO |
| Hysteresis | ≤ 0.10 % FSO |
| Non-Repeatability | ≤ 0.03 % of load |
| Zero balance | ≤ 3.0 % FSO |
| Creep (30 Minutes) | ≤ 0.05% of Load |
| ⁽¹⁾ (“K” = thousand) | |
| Electrical | |
|---|---|
| Input Impedance | 750 ohms (Nominal) |
| Output Impedance | 700 ohms (Nominal) |
| Insulation Resistance | >5000 Megohms @ 50VDC |
| Excitation Voltage | 10 V AC/DC (15 V maximum) |
| Cable Color Code | + Excitation (Blue, Pin 3) – Excitation (Black, Pin 4) + Signal (White, Pin 2) – Signal (Brown, Pin 1) |
| Cable Type | 4-conductor, 22 AWG, PVC Jacket, M12 Axial Female Connector, Diameter: 0.232” |
| Cable Length | See Dimensions Tab |
| Cable Termination | Finished Conductors |
| Mechanical | |
|---|---|
| Material | Stainless Steel |
| Finish | Natural |
| Safe Overload | Compression 150% FSO Tension: 150% FSO Side Load 10% FSO |
| Ultimate Overload | Compression 300% FSO Tension: 300% FSO Side Load: 20% FSO |
| Deflection | See Dimensions Tab |
| Weight | See Dimensions Tab |
| Environmental | |
|---|---|
| Temperature, Operating | -50 to +175 °F (-45 to +79°C) |
| Temperature, Compensated | 14 to +104 °F (-10 to +40°C) |
| Temperature, Storage | -50 to +175 °F (-45 to +79°C) |
| Temperature Effects | Zero < 0.005% FSO/°F < 0.009% FSO/°C |
| Temperature Effects | Output < 0.0010% of Rdg./°F < 0.0018% Rdg./°C |
| Sealing | IP67; Multi-redundant; Limited Immersion Tolerance |

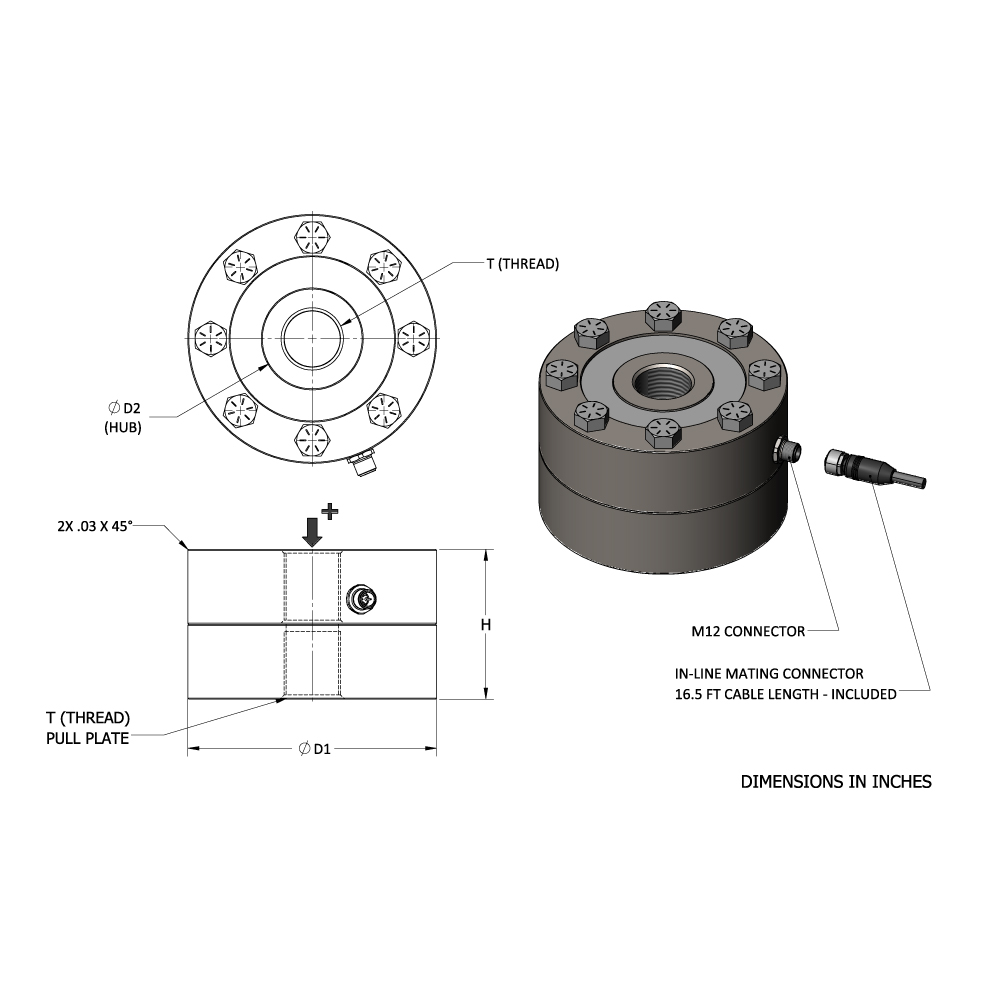

| CAPACITY (LB) | D1 | D2 | D3 | H | G | T (THREAD) | RECOMMENDED BOLT TORQUE | DEFLECT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 5K, 7.5K, 10K, 15K | 4.98 | 1.80 | 0.41 | 1.50 | 4.000 | 1-14 UNS-2B | 31 FT-LBS | 0.002 | 14.0 LB |
| 20K, 30K, 50K | 5.98 | 2.40 | 0.53 | 1.80 | 4.875 | 1 1/2-12 UNF-2B | 100 FT-LBS | 0.003 | 23.0 LB |
| Datasheets |  PM3-TC-DS.00.pdf |
| Step Files |  PM3-TC-5K-to-15K-X1-STEP.stepPM3-TC-20K-to-50K-X1-STEP.step |
