UB

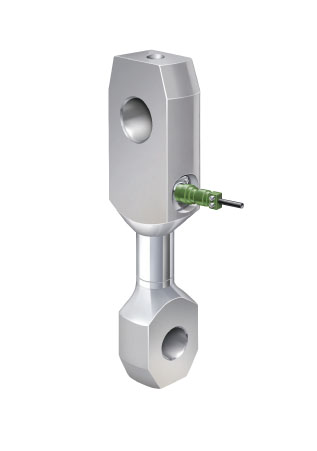

The UB Series is an extremely rugged, high performance tension link constructed of alloy tool steel or stainless steel. It is designed to accurately measure tension loads in rated capacities ranging from 0-3,000 to 0-400,000 lbs.. Proprietary, axial “gun-bore” gauging techniques produce the benefits of relatively compact size and excellent environmental sealing. This tension link is available as Hostile Environment Sealed (IP66-High Pressure Jets), Harsh Environment Sealed (IP67-Limited Immersion) and Hermetically Sealed (IP68-Continuous Immersion) by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal components. This tension link has an integral MS connector with several mating connector/cable combinations available. The UB Series offers unique mounting capabilities to address application-specific requirements. The attributes of the UB Series make it ideal for crane/lift/winch loading, mooring line tension monitoring, guyline tensioning as well OEM requirements where a versatile, rugged solution is needed. The UB Series reliability produces exceptional performance for applications in aerospace, automotive, steel processing, off-shore, power generation, mining, material handling, wood/pulp/paper, petrochemical and similarly demanding applications.
