UC1-C Series
Price range: $590.00 through $2,950.00
- 5 t to 50 t (metric) Capacities
- 0.02% Accuracy Class
- 3 mV/V Full Scale Output
- 20 FT or 33 FT PVC Cable
- FM Approved, Intrinsically Safe
- Tension Link Configuration
- IP67 Environmental Sealing
- Nickel Plated Alloy Steel Construction
- Enhanced Web Column Design
- Tension Only

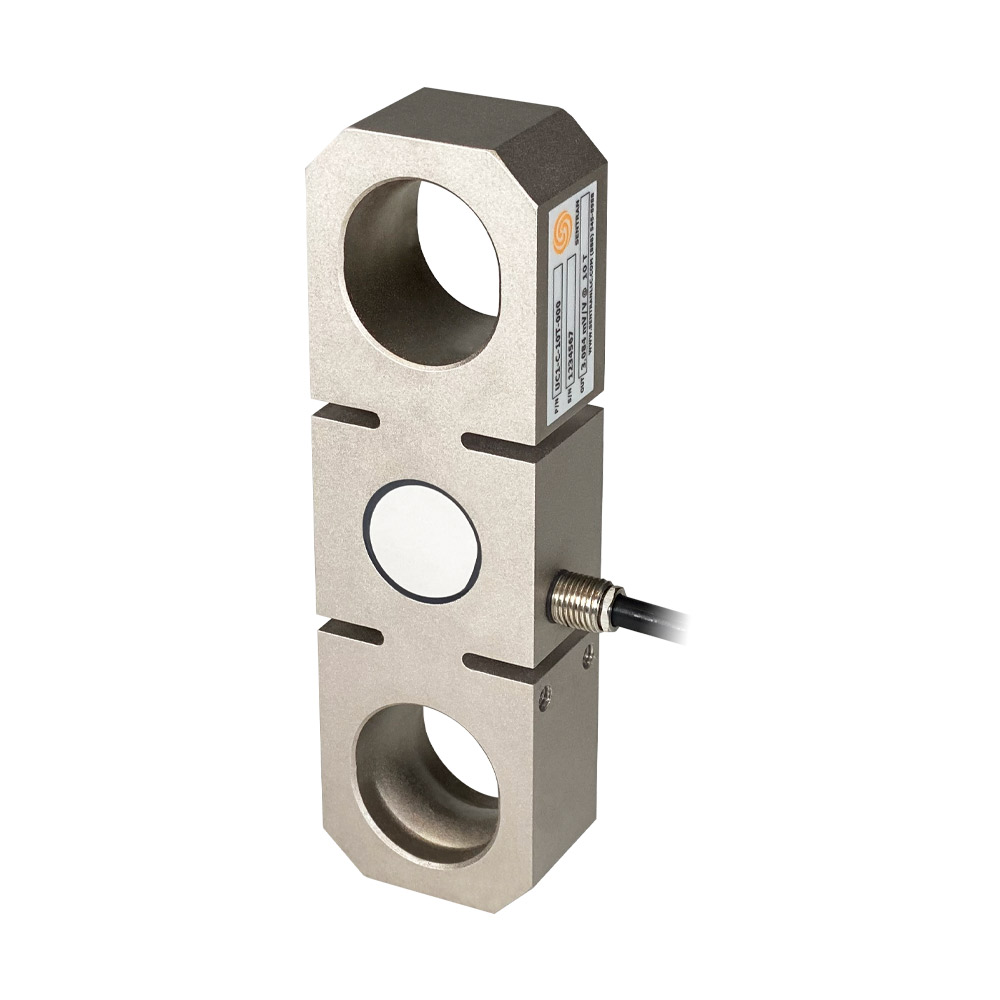

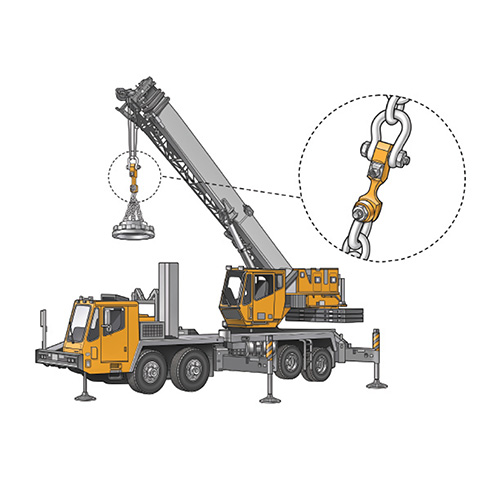

The UC1-C Series is a high performance load cell constructed of nickel plated alloy steel. The UC1-C is designed to accurately measure tension forces for applications ranging from 0-5 t to 0-50 t (metric). The UC1-C features web column sensing design, coupled with an enhanced strain gage arrangement, produces excellent performance. The UC1-C load cell is Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary multi-redundant barriers uniquely integrated to protect all internal components. The integral premium instrumentation grade cable features a durable PVC jacket over a tinned-copper braided shield for superior mechanical protection and for minimizing the unwanted electrical effects of RFI and EMI. The attributes of the UC1-C Series make it ideal for tension only measurements in shackle, spelter socket, and clevis assemblies for crane and winch loading, mooring line tension monitoring, and guyline tensioning. The UC1-C Series reliability produces exceptional performance for applications in aerospace, automotive, steel processing, mining, material handling, and petrochemical where a precision tension link load cell solution is required.
| Performance | |
|---|---|
| Rated capacities ⁽¹⁾ (t) | 5, 10, 20, 30, 50 |
| Rated Output (FSO) | 3.0 mV/V |
| Output Tolerance | ±10 % R.O. |
| Combined Error Band | ≤ 0.02 % FSO |
| Non-Linearity | ≤ 0.02 % FSO |
| Hysteresis | ≤ 0.02 % FSO |
| Non-Repeatability | ≤ 0.02 % of load |
| Zero balance | ≤ 1.0 % FSO |
| Creep (30 Minutes) | ≤ 0.03% of Load |
| ⁽¹⁾ (“K” = thousand) | |
| Electrical | |
|---|---|
| Input Impedance | 400 ± 20 ohms |
| Output Impedance | 350 ± 3 ohms |
| Insulation Resistance | >2000 Megohms @ 50VDC |
| Excitation Voltage | 10 V AC/DC (15 V maximum) |
| Cable Color Code | + Excitation (Red) – Excitation (Black) + Signal (Green) – Signal (White) Shield (Natural) |
| Cable Type | 4-conductor, 24 AWG, PVC Jacket, Tinned Copper Braid, Diameter: 0.200″ |
| Cable Length | See Dimensions Tab |
| Cable Termination | Finished Conductors |
| Cable Seal | Compression Gland Fitting |
| Mechanical | |
|---|---|
| Material | Alloy Tool Steel |
| Finish | Electroless Nickel |
| Safe Overload | Tension 150% FSO |
| Ultimate Overload | Tension 400% FSO |
| Deflection | See Dimensions Tab |
| Weight | See Dimensions Tab |
| Environmental | |
|---|---|
| Temperature, Operating | -20 to +160 °F (-29 to +16°C) |
| Temperature, Compensated | 14 to +122 °F (-10 to +50°C) |
| Temperature, Storage | -58 to +185 °F (-50 to +85°C) |
| Temperature Effects | Zero < 0.002% FSO/°F < 0.004% FSO/°C |
| Temperature Effects | Output < 0.0006% of Rdg./°F < 0.0012% Rdg./°C |
| Sealing | IP67; Multi-redundant; Limited Immersion Tolerance |

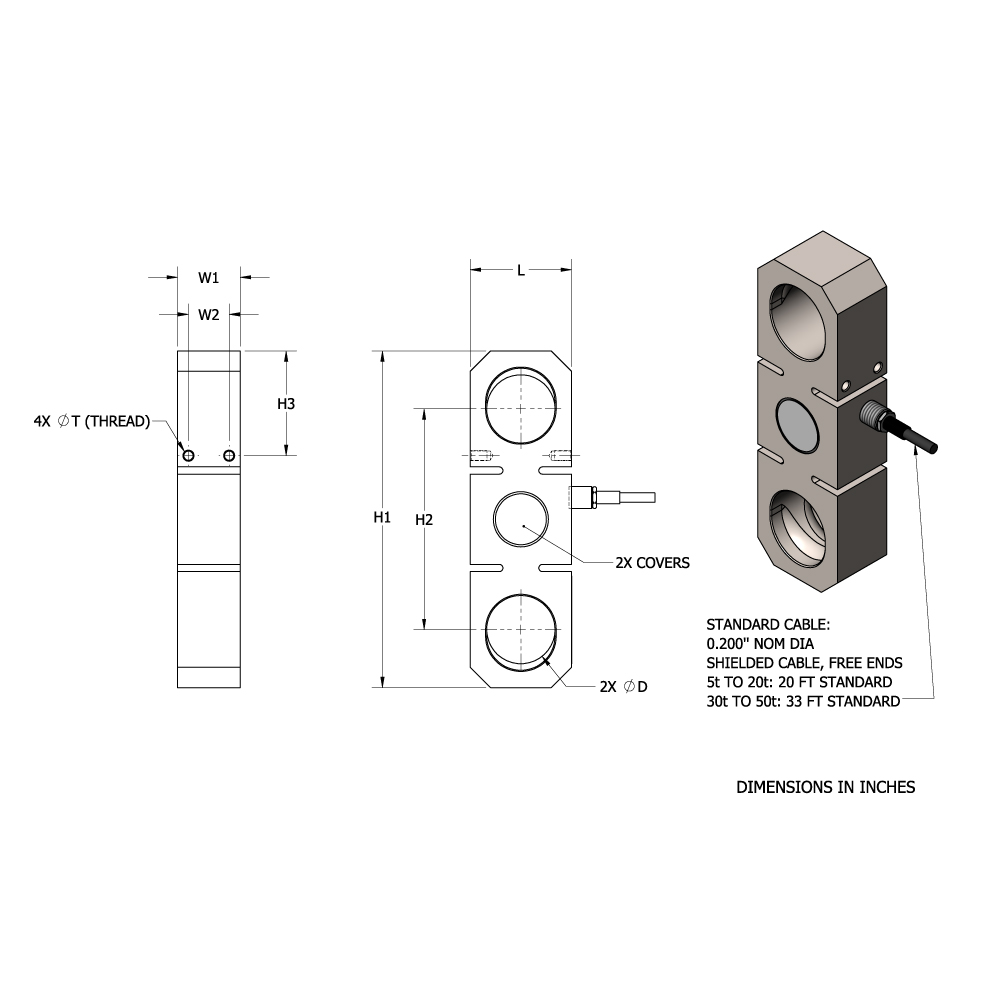

| CAPACITY (t) | D | H1 | H2 | H3 | L | W1 | W2 | T (THREAD) | DEFLECT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 1.06 | 5.51 | 3.66 | 1.61 | 1.50 | 0.98 | 0.59 | M4 X 0.7 (0.20″ DP) | 0.006 | 2.0 LB |
| 10 | 1.46 | 7.20 | 4.72 | 2.24 | 2.17 | 1.34 | 0.87 | M6 X 1.0 (0.31″ DP) | 0.006 | 5.5 LB |
| 20 | 2.09 | 9.92 | 6.46 | 3.23 | 2.91 | 1.97 | 1.18 | M6 X 1.0 (0.31″ DP) | 0.006 | 12.0 LB |
| 30 | 2.36 | 12.11 | 7.95 | 3.66 | 3.39 | 2.36 | 1.57 | M8 X 1.25 (0.47″ DP) | 0.008 | 20.5 LB |
| 50 | 2.87 | 15.35 | 10.12 | 4.57 | 4.33 | 2.95 | 1.57 | M12 X 1.75 (0.79″ DP) | 0.008 | 49.0 LB |
