VB

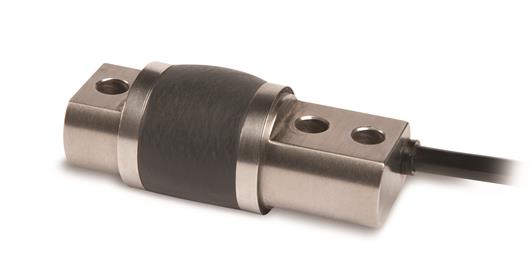

The VB Series is a compact, high performance, bonded foil strain gage load cell constructed of heat treated steel or stainless steel. The VB Series is designed to accurately measure compression loads in capacities ranging from 0-25 lbs. to 0-500 lbs. The dual-guided cantilever design yields exceptional performance in a very compact package. The steel (VB1) version is Environmentally Sealed (IP67-Low Pressure Jets) and the stainless steel (VB3) version is Harsh Environment Sealed (IP65-Low Pressure Jets), using proprietary, multi-redundant environmental barriers, to protect the strain gage area and the cable entry, both high failure mode areas in competitive versions of this load cell. The integral cable is durable PE/PVC jacketed and features a braided, tinned-copper shield for mechanical protection and to minimize the effects of common industrial electrical noise, e.g. RFI and EMI. Versatile companion weigh modules include the MB1 Series (steel) and the MB3 Series (stainless steel) are available for convenient weighing of tanks, bins, hoppers and similar vessels. The attributes of the VB Series make it an ideal choice for reactor, mixer and blender weighing, material handling, packaging, process applications and O.E.M. weighing situations where a well sealed, versatile, high performance load cell solution is needed.
