XA4-C Series
$445.00 – $890.00Price range: $445.00 through $890.00
- 500 LB to 20K LB Capacities
- 0.03% Accuracy Class
- 3 mV/V Full Scale Output
- 20 FT PVC Cable
- FM Approved, Intrinsically Safe
- IP68 Environmental Sealing
- Stainless Steel Welded Seals
- Shear Beam Design

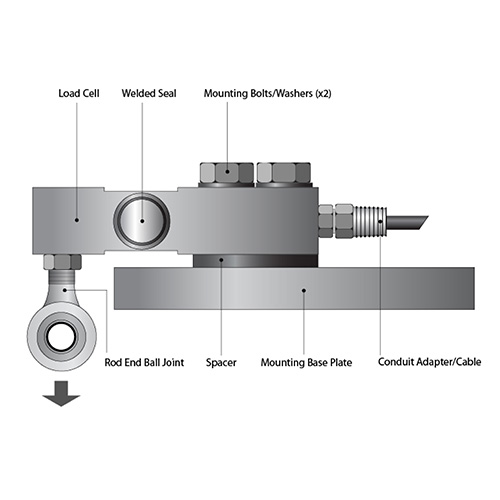

- Universal – Tension and Compression

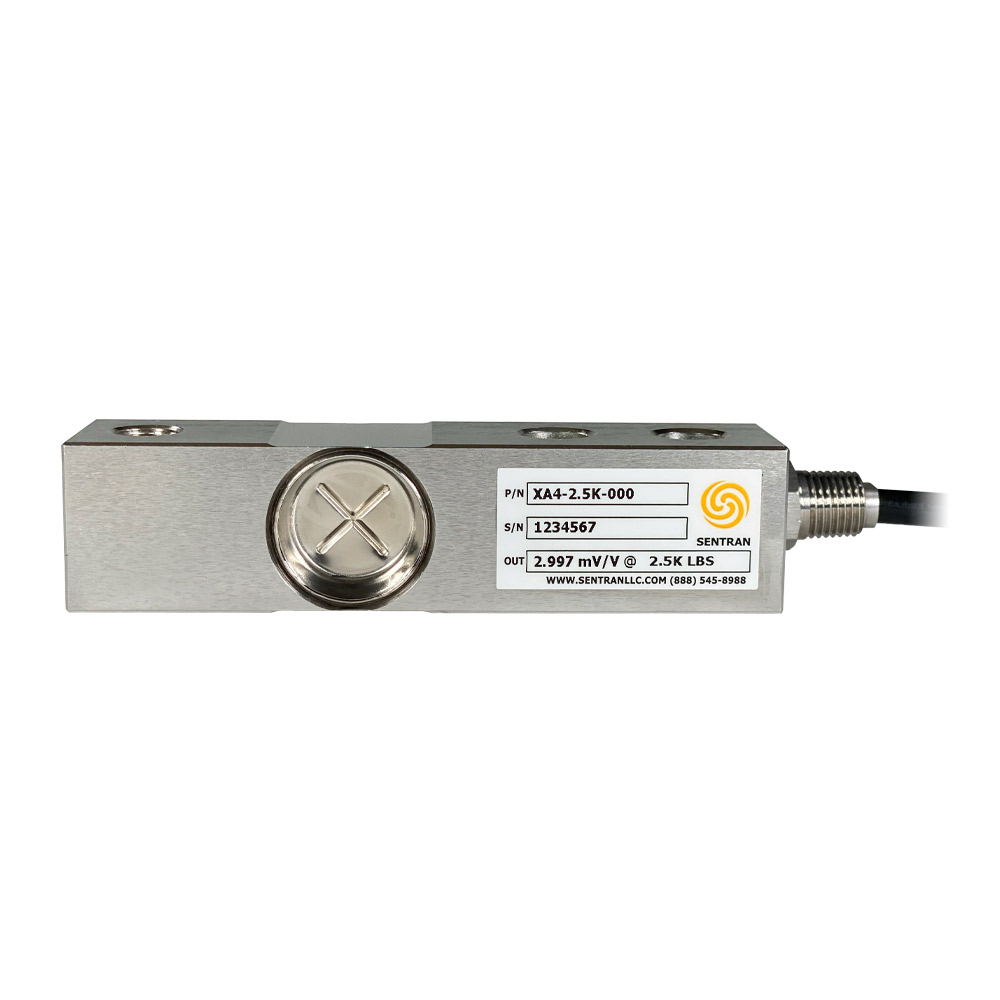

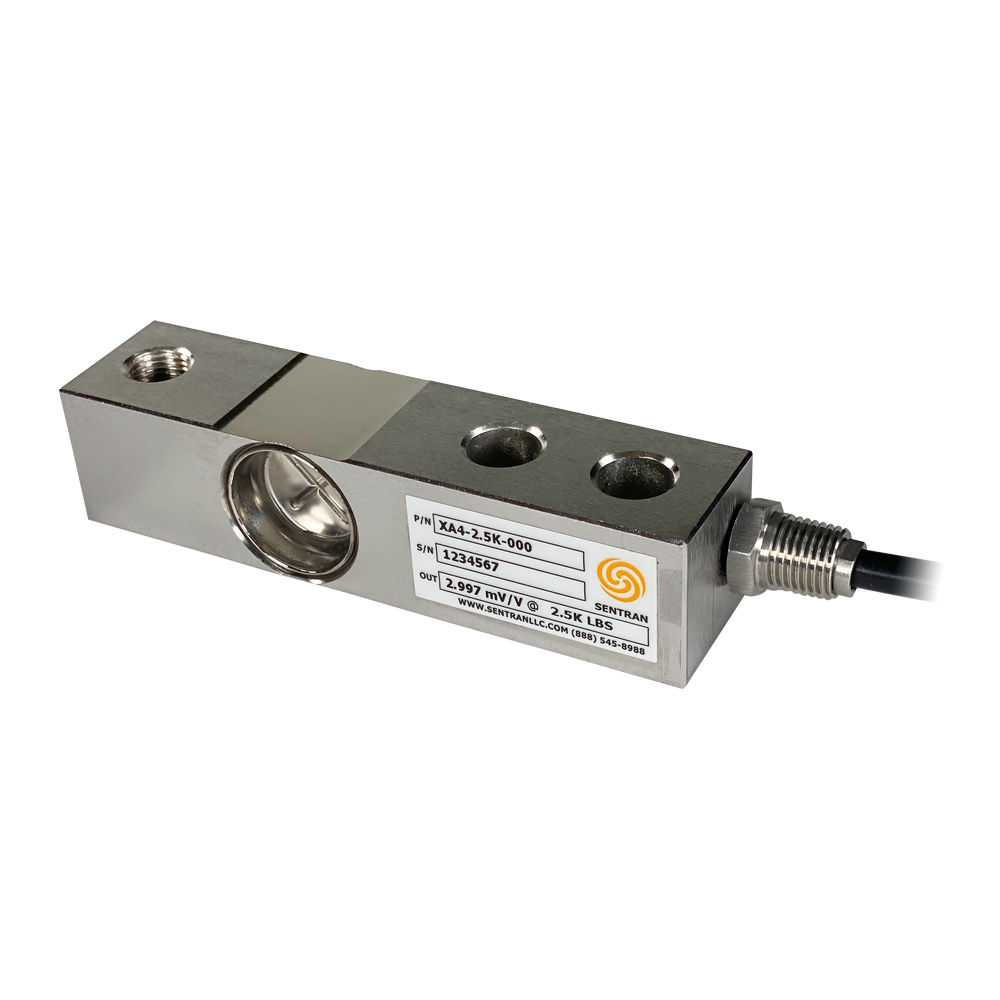

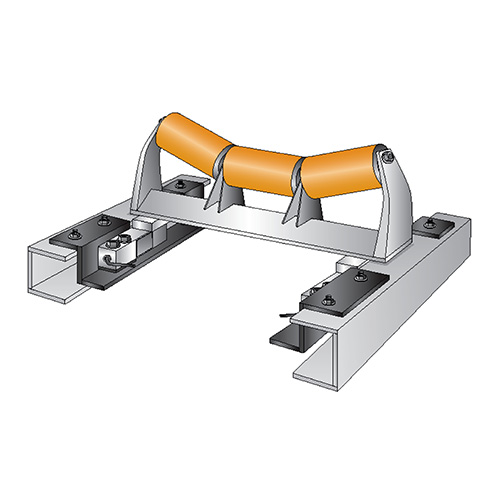

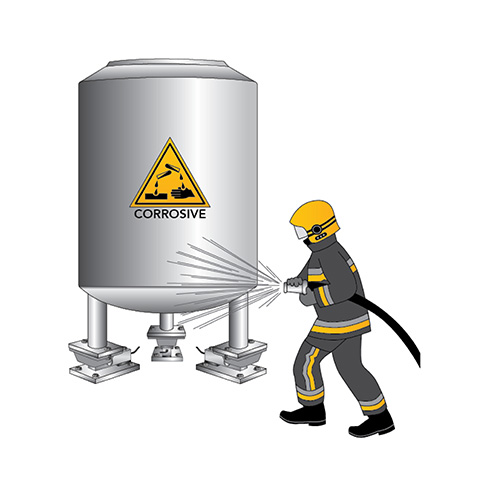

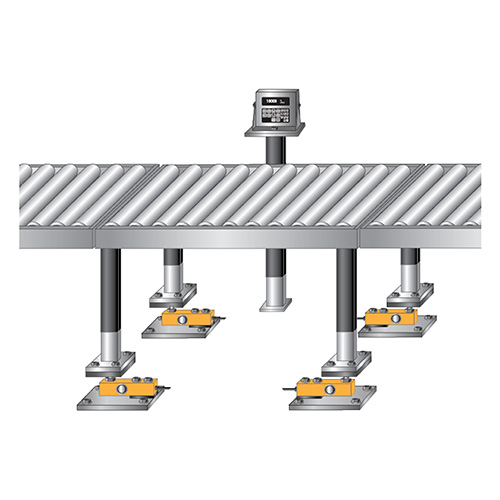

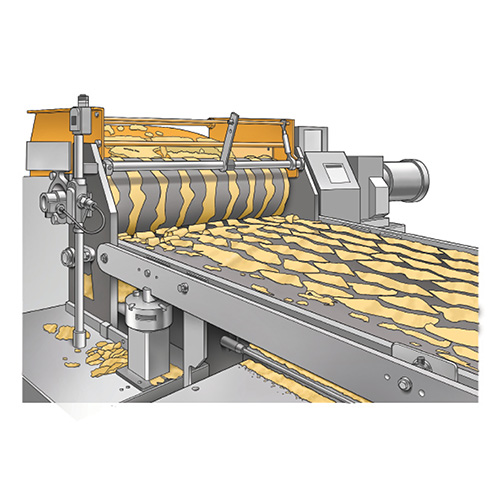

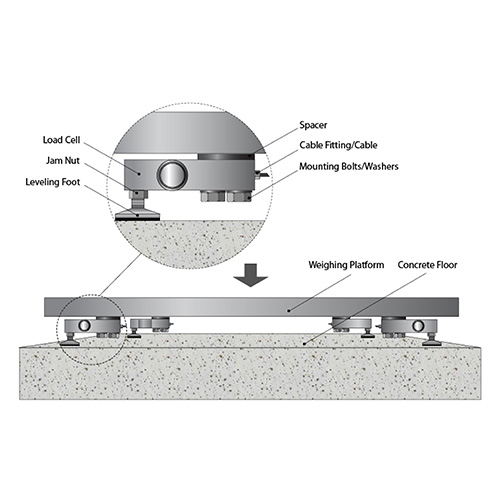

The XA4-C Series is a high performance shear beam load cell constructed of heat treated stainless steel. The XA4-C is designed to accurately measure tension and compression forces for applications ranging from 0-500 LB to 0-20,000 LB. The XA4-C features a robust shear beam design that readily tolerates moments induced by angular, eccentric, or off-center loading, with minimal sensitivity to these extraneous loads. The XA4-C Series load cell is Harsh Environment Sealed to IP68 incorporating welded drawn covers to protect all internal components. The load cell output signals are calibrated to a close tolerance to facilitate in situ interchangeability and multiple load cell summing applications. The integral premium instrumentation grade cable features a durable PVC jacket over a tinned-copper braided shield for superior mechanical protection and for minimizing the unwanted electrical effects of RFI and EMI. An integral conduit adapter facilitates sealing and protecting the cable in conduit for increased enviromental protection. Versatile companion weighing modules, MB Series and MF Series, are available for convenient weighing of tanks, bins, hoppers, conveyors, and similar applications. The attributes of the XA4-C Series make it an ideal choice for industrial, reactor, mixer and blender weighing, material handling, and weighing situations where a versatile high performance load cell solution is required.
| Performance | |
|---|---|
| Rated capacities ⁽¹⁾ (LB) | 500, 1K, 2.5K, 4K, 5Kse, 5K, 10K, 15K, 20K |
| Rated Output (FSO) | 3.0 mV/V |
| Output Tolerance | ±0.25 % R.O. |
| Combined Error Band | ≤ 0.03 % FSO |
| Non-Linearity | ≤ 0.03 % FSO |
| Hysteresis | ≤ 0.03 % FSO |
| Non-Repeatability | ≤ 0.01 % of load |
| Zero balance | ≤ 1.0 % FSO |
| Creep (30 Minutes) | ≤ 0.03% of Load |
| ⁽¹⁾ (“K” = thousand) | |
| Electrical | |
|---|---|
| Input Impedance | 350 ± 7 ohms |
| Output Impedance | 350 ± 3 ohms |
| Insulation Resistance | >2000 Megohms @ 50VDC |
| Excitation Voltage | 10 V AC/DC (15 V maximum) |
| Cable Color Code | + Excitation (Red) – Excitation (Black) + Signal (Green) – Signal (White) Shield (Natural) |
| Cable Type | 4-conductor, 24 AWG, PVC Jacket, Tinned Copper Braid, Diameter: 0.200″ |
| Cable Length | See Dimensions Tab |
| Cable Termination | Finished Conductors |
| Cable Seal | Conduit Adapter |
| Mechanical | |
|---|---|
| Material | 17-4pH Stainless Steel |
| Finish | Natural – Bright |
| Safe Overload | Compression 150% FSO Tension 150% FSO Side Load 100% FSO |
| Ultimate Overload | Compression 300% FSO Tension 300% FSO Side Load: 200% FSO |
| Deflection | See Dimensions Tab |
| Weight | See Dimensions Tab |
| Environmental | |
|---|---|
| Temperature, Operating | -20 to +160 °F (-29 to +71°C) |
| Temperature, Compensated | 14 to +122 °F (-10 to +50°C) |
| Temperature, Storage | -58 to +185 °F (-50 to +85°C) |
| Temperature Effects | Zero < 0.0015% FSO/°F < 0.0026% FSO/°C |
| Temperature Effects | Output < 0.0008% of Rdg./°F < 0.0014% Rdg./°C |
| Sealing | IP68; Continual Immersion Tolerance |

| CAPACITY (LB) | D | H | L1 | L2 | L3 | L4 | L5 | W | T (THREAD) | RECOMMENDED BOLT TORQUE | DEFLECT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500, 1K, 2.5K, 4K, 5Kse | 0.53 | 1.22 | 5.12 | 0.62 | 1.00 | 3.00 | 2.25 | 1.22 | 1/2-20 UNF X 0.61 DP | 75 FT-LB | 0.014-0.022 | 2.5 LB |
| 5K, 10K | 0.79 | 1.50 | 6.75 | 0.75 | 1.50 | 3.75 | 3.00 | 1.50 | 3/4-16 UNF X 0.75 DP | 100 FT-LB | 0.020 | 4.0 LB |
| 15K, 20K | 1.03 | 2.00 | 8.75 | 1.00 | 2.00 | 4.75 | 4.00 | 2.00 | 1-14 UNS X 1.00 DP | 250 FT-LB | 0.032 | 8.0 LB |
