ZA
- 25 to 20,000 lbs. Capacities
- 0.02% Accuracy Class – NTEP Grade
- Application Versatility
- Load Introduction Hardware
- Steel Element
- IP67 Environmental Sealing
- Output Matched for Single or Multiple
Load Cell Applications - Two Year Warranty

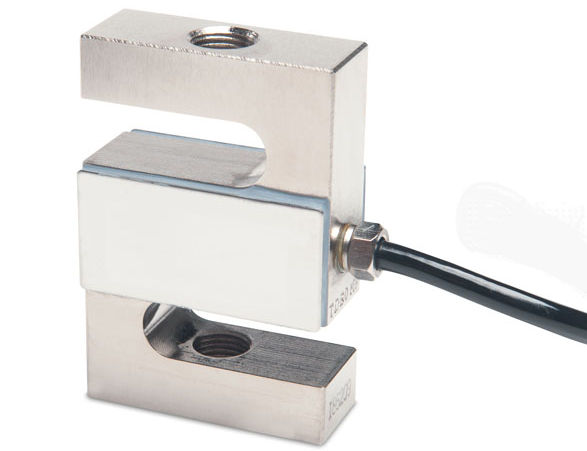

The ZA Series is a high performance, bonded foil strain gage load cell constructed of
alloy tool steel. The ZA Series is designed to accurately measure tension and/or compression
loads in capacities ranging from 0-25 lbs. to 0-20,000 lbs. The integrated, threaded loading
brackets reduce sensitivity to off-center and side loading effects, while making the load cell readily
adaptable to in-line measurements. This load cell is Harsh Environment Sealed (IP67-Limited Immersion)
by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal
components. The load cell output signals are calibrated to a close tolerance to facilitate in situ
interchangeability and multiple load cell summing applications. The integral premium, instrumentation
grade cable features a durable polyurethane-jacket over a tinned-copper braided shield for
superior mechanical protection and to minimize the unwanted electrical effects of RFI and EMI. A
variety of companion loading accessories include the MA Series Tension Mounts, rod end bearings,
eyebolts, load buttons and others. The ZA Series is an ideal choice for measurements in
the laboratory, manufacturing and process applications, and for general force measurements and
weighing situations where a dependable and versatile load cell solution is needed.
