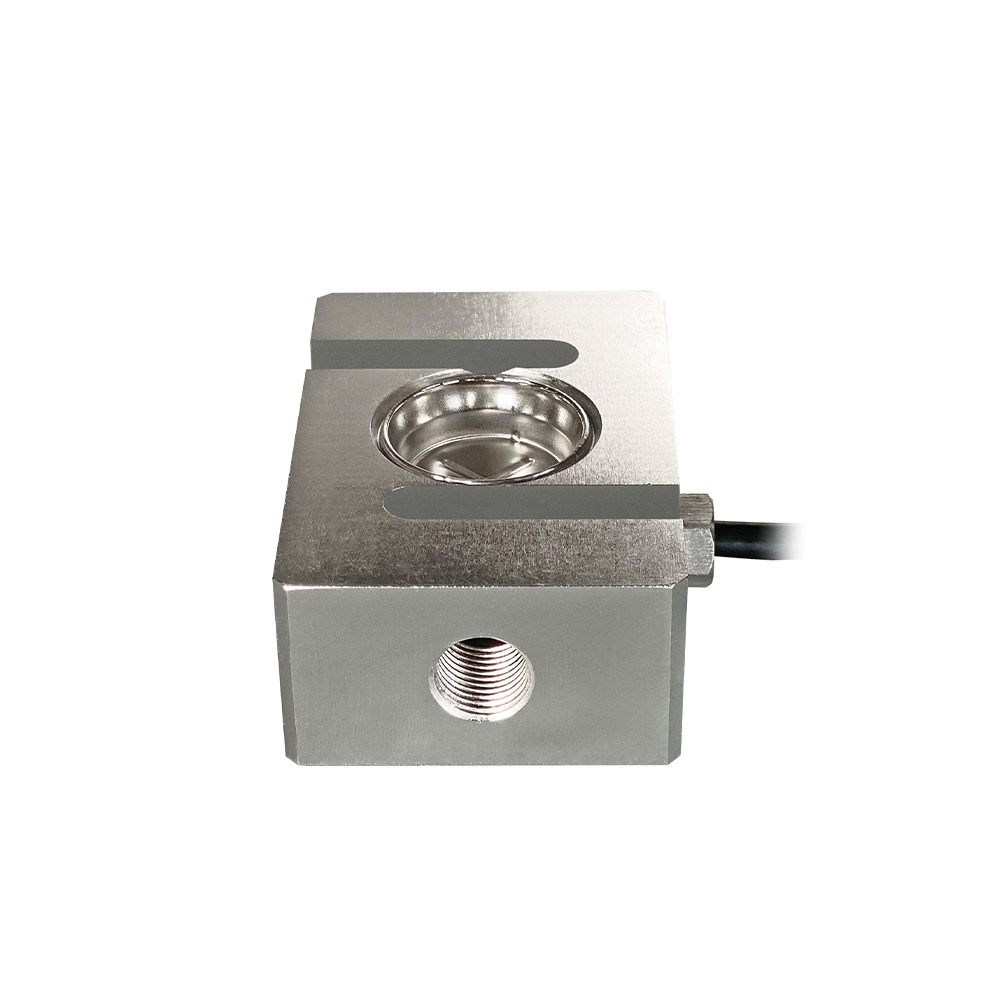

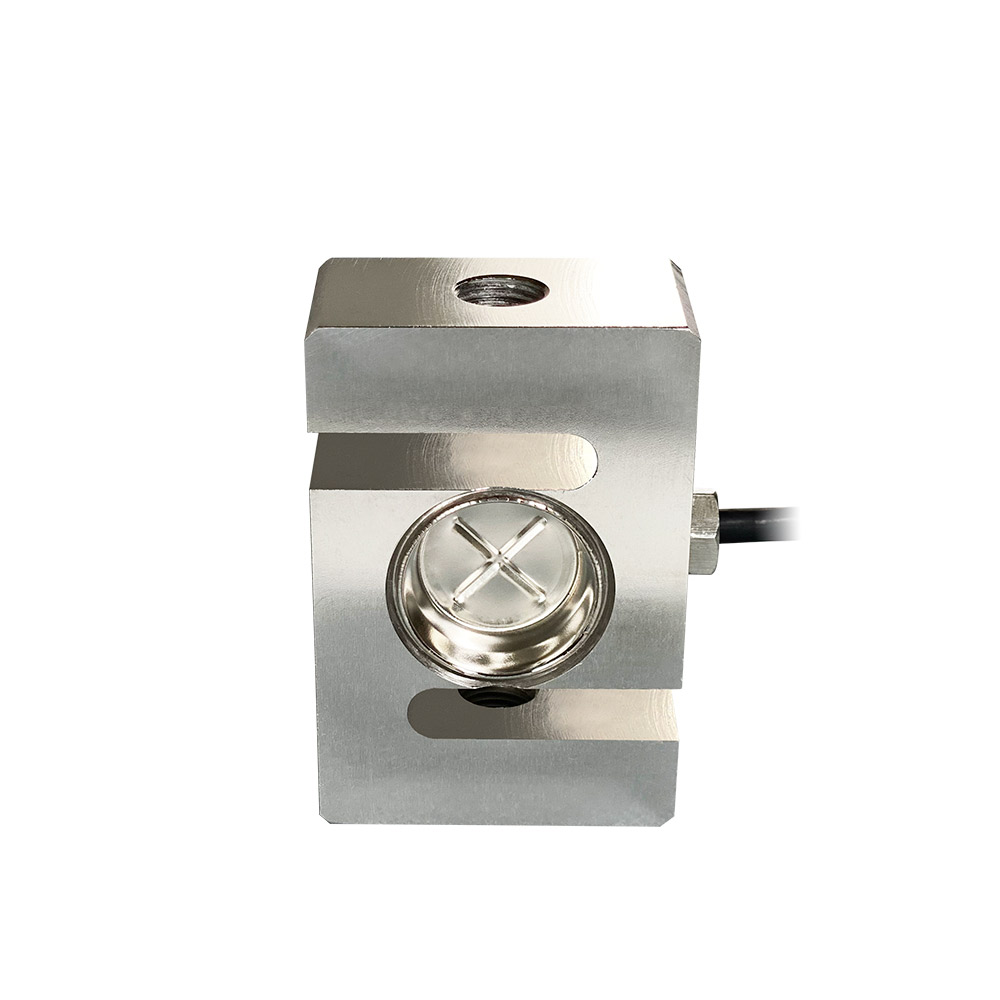

ZD4-C Series
Price range: $650.00 through $1,595.00
- 500 LB to 20K LB Capacities
- 0.02% Accuracy Class
- 3 mV/V Full Scale Output
- 20 FT PVC Cable
- FM Approved, Intrinsically Safe
- IP68 Environmental Sealing
- Stainless Steel Construction
- S-Beam Configuration with Shear Design

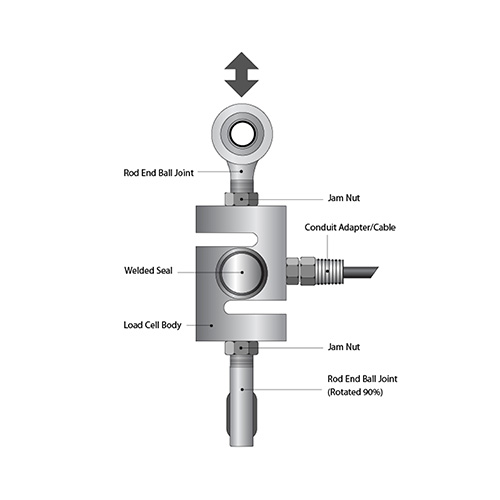

- Universal – Tension and Compression

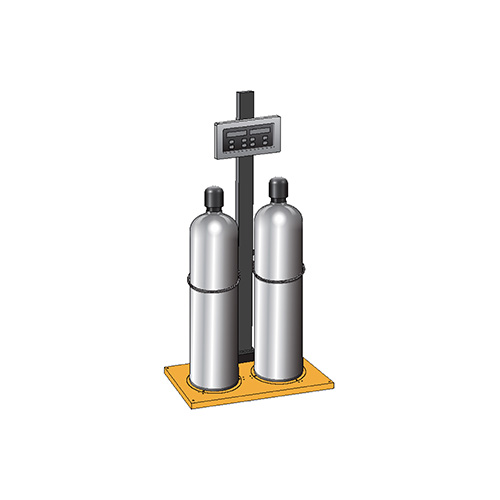

The ZD4-C Series is a high performance S-Beam load cell constructed of heat treated stainless steel. The ZD4-C is designed to accurately measure tension and compression forces for applications ranging from 0-500 LB to 0-20,000 LB. The ZD4-C features a robust shear beam design (>500 LB) that readily tolerates moments induced by angular, eccentric, or off-center loading, with minimal sensitivity to these extraneous loads. The ZD4-C Series load cell is Harsh Environment Sealed to IP68 incorporating a welded cover seals to protect all internal components. The load cell output signals are calibrated to a close tolerance to facilitate multiple load cell summing applications. The integral premium instrumentation grade cable features a durable PVC jacket over a tinned-copper braided shield for superior mechanical protection and for minimizing the unwanted electrical effects of RFI and EMI. The versatile S-Beam configuration is convenient for many applications such as weighing tanks, bins, hoppers, conveyors, and similar applications. The ZD4-C is an ideal choice for measurement in C-I-P process, heavy washdown and corrosive applications, reactor, mixer and blender weighing where a precision high performance load cell solution is required.
| Performance | |
|---|---|
| Rated capacities ⁽¹⁾ (LB) | 500, 1K, 1.5K, 2K, 2.5K, 3K, 5K, 10K, 15K, 20K |
| Rated Output (FSO) | 2.0 mV/V |
| Output Tolerance | ±1 % R.O. |
| Combined Error Band | ≤ 0.02 % FSO |
| Non-Linearity | ≤ 0.02 % FSO |
| Hysteresis | ≤ 0.03 % FSO |
| Non-Repeatability | ≤ 0.03 % of load |
| Zero balance | ≤ 1.0 % FSO |
| Creep (30 Minutes) | ≤ 0.03% of Load |
| ⁽¹⁾ (“K” = thousand) | |
| Electrical | |
|---|---|
| Input Impedance | 400 ± 20 ohms |
| Output Impedance | 350 ± 3 ohms |
| Insulation Resistance | >2000 Megohms @ 50VDC |
| Excitation Voltage | 10 V AC/DC (15 V maximum) |
| Cable Color Code | + Excitation (Red) – Excitation (Black) + Signal (Green) – Signal (White) Shield (Natural) |
| Cable Type | 4-conductor, 24 AWG, PVC Jacket, Tinned Copper Braid, Diameter: 0.200″ |
| Cable Length | See Dimensions Tab |
| Cable Termination | Finished Conductors |
| Cable Seal | Compression Gland Fitting |
| Mechanical | |
|---|---|
| Material | Stainless Steel |
| Finish | Natural |
| Safe Overload | Compression 150% FSO Tension 150% FSO Side Load 30% FSO |
| Ultimate Overload | Compression 300% FSO Tension 300% FSO Side Load: 50% FSO |
| Deflection | See Dimensions Tab |
| Weight | See Dimensions Tab |
| Environmental | |
|---|---|
| Temperature, Operating | -20 to +160 °F (-30 to +70°C) |
| Temperature, Compensated | 14 to +122 °F (-10 to +50°C) |
| Temperature, Storage | -58 to +185 °F (-50 to +85°C) |
| Temperature Effects | Zero < 0.0015% FSO/°F < 0.0026% FSO/°C |
| Temperature Effects | Output < 0.0008% of Rdg./°F < 0.0014% Rdg./°C |
| Sealing | IP68; Continual Immersion Tolerance |

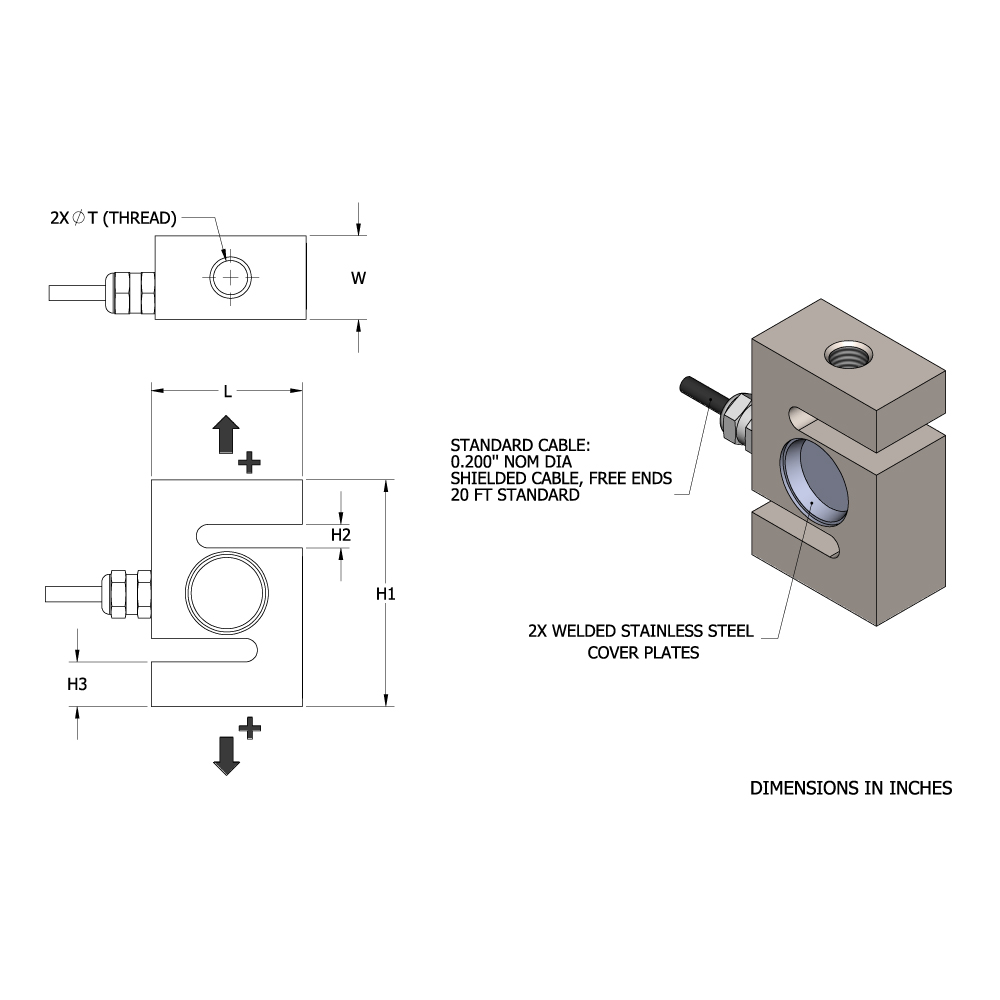

| CAPACITY (LB) | H1 | H2 | H3 | L | W | T (THREAD) | DEFLECT | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| 500, 1K, 1.5K, 2K, 2.5K, 3K | 3.00 | 0.31 | 0.61 | 2.00 | 1.11 | 1/2-20 UNF-2B | 0.012 | 2.0 LB |
| 5K | 4.00 | 0.47 | 0.84 | 3.00 | 1.11 | 3/4-16 UNF-2B | 0.013 | 3.5 LB |
| 10K | 4.00 | 0.47 | 0.76 | 3.00 | 1.25 | 3/4-16 UNF-2B | 0.019 | 4.0 LB |
| 15K | 5.50 | 0.71 | 1.27 | 4.00 | 1.25 | 1-14 UNF-2B | 0.019 | 6.5 LB |
| 20K | 7.00 | 1.18 | 1.32 | 5.00 | 2.00 | 1 1/4-12 UNF-2B | 0.018 | 15.5 LB |
