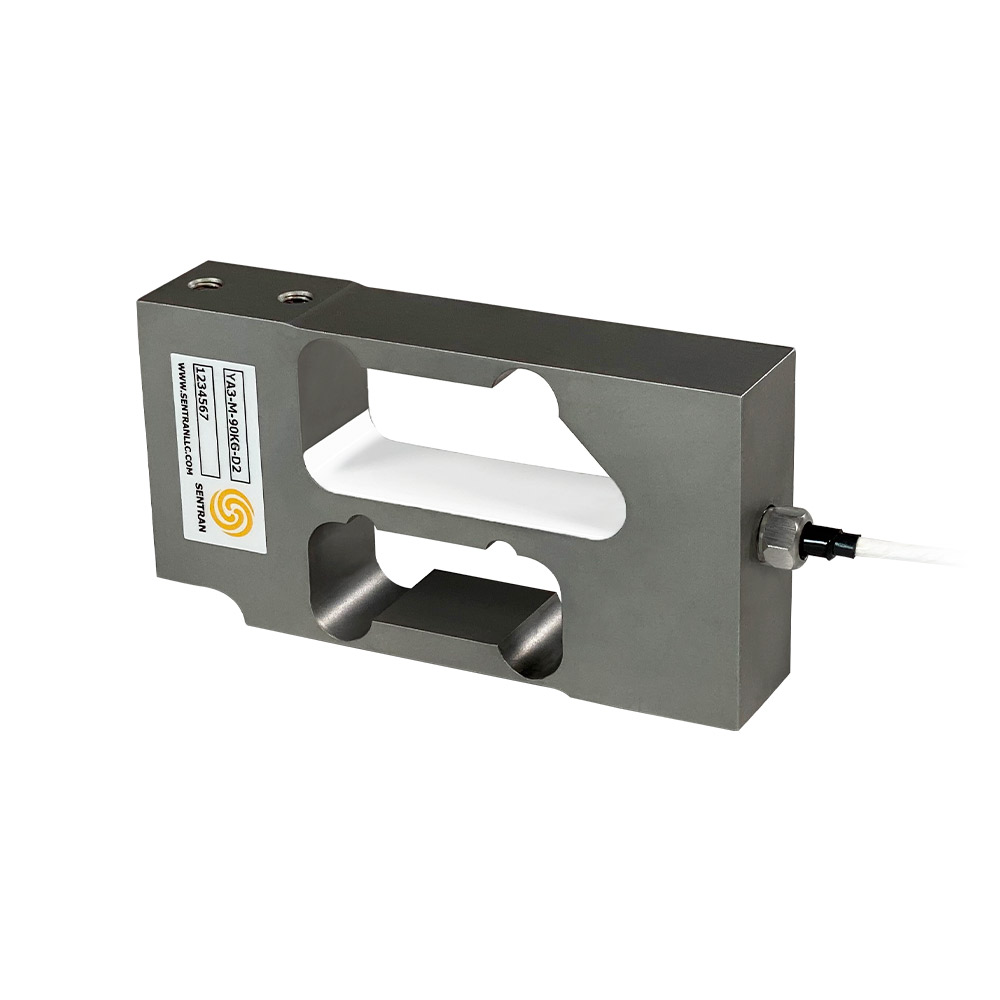

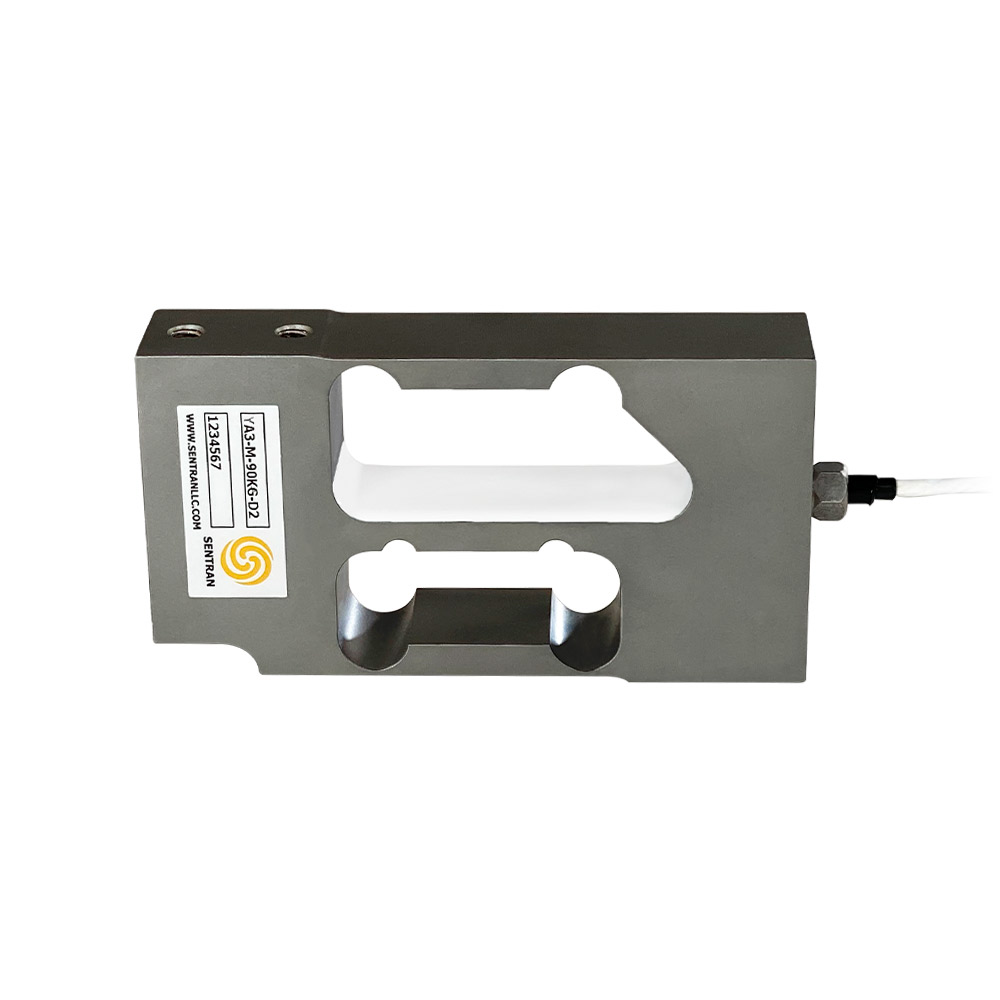

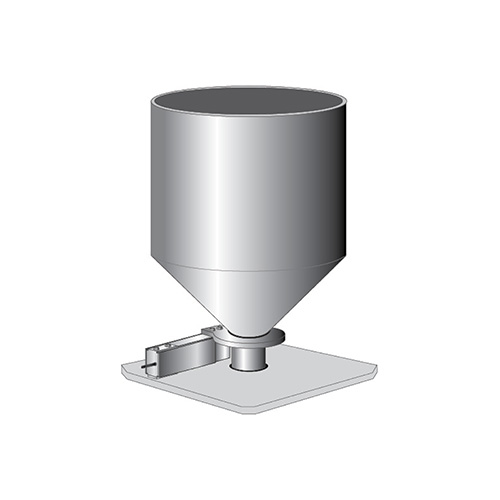

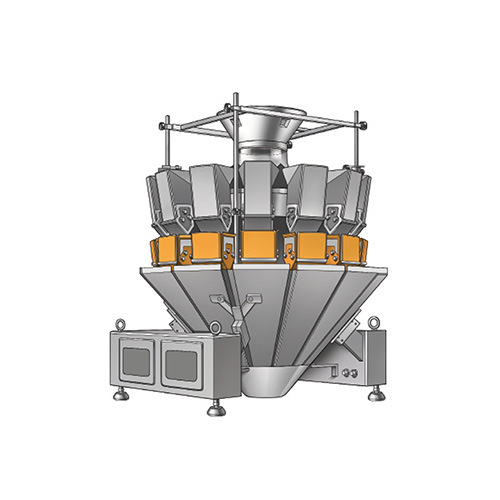

YA3-M-D2 Series
$1,050.00
- 10 KG to 90 KG Capacities
- 400°F High Temp Operation
- 0.02% Accuracy Class
- 2 mV/V Full Scale Output
- 10 FT Teflon Cable
- Standard Profile – 2.5″ Height
- IP67 Environmental Sealing
- Stainless Steel Construction
- Three-beam Cantilever Design
- Universal – Tension and Compression
- Moment Compensated
The YA3-M-D2 Series is a moment compensated load cell constructed of heat treated stainless steel. YA3-M-D2 is designed to accurately measure tension and compression forces for applications ranging from 0-10 KG to 0-90 KG with an expanded operating temperature range of 400°F. The YA3-M-D2 Series features a unique three-beam guided cantilever design that readily tolerates moments induced by angular, eccentric, or off-center loading, with minimal sensitivity to these extraneous loads, producing excellent performance. The three-beam design also yields better performance for temperature gradients in varying temperature environments. The YA3-M-D2 Series is specifically designed to reject the undesirable measurement effects of off-center loading, a requirement for platform scale applications. The load cell is environmentally sealed to IP67 (limited immersion) by virtue of proprietary multi-redundant barriers uniquely integrated to protect all internal components. The integral premium instrumentation grade cable features a premium Teflon jacket over a tinned-copper braided shield for superior mechanical protection and for minimizing the unwanted electrical effects of RFI and EMI. The attributes of the YA3-M-D2 Series make it convenient for weighing bins and hoppers. The YA3-M-D2 Series is an ideal choice for plastic injection molding hoppers, material handling, packaging, or bagging scale applications where a precision, versatile, high temperature, moment compensated load cell solution is required.
| Performance | |
|---|---|
| Rated capacities (KG) | 10, 20, 50, 90* |
| Rated Output (FSO) | 2.0 mV/V |
| Output Tolerance | ±10 % R.O. |
| Combined Error Band | ≤ 0.03 % FSO |
| Non-Linearity | ≤ 0.03 % FSO |
| Hysteresis | ≤ 0.03 % FSO |
| Non-Repeatability | ≤ 0.01 % of load |
| Moment Sensitivity | ≤ 0.018% Applied load per inch |
| Max Moment | 10KG to 20KG: 6 inch x Capacity 50KG to 90 KG: 4 Inch x Capacity |
| Zero balance | ≤ 5.0 % FSO |
| Creep (30 Minutes) | ≤ 0.05% of Load |
| *Other capacities available upon request. Please inquire for price and lead times. |
|
| Electrical | |
|---|---|
| Input Impedance | 350 ± 20 ohms |
| Output Impedance | 350 ± 3 ohms |
| Insulation Resistance | >5000 Megohms @ 50VDC |
| Excitation Voltage | 10 V AC/DC (15 V maximum) |
| Cable Color Code | + Excitation (Green) – Excitation (Black) + Signal (Red) – Signal (White) Shield (Natural) |
| Cable Type | 4-conductor, 26 AWG, Teflon® Jacket, Tinned Copper Braid, Diameter: 0.142″ |
| Cable Length | See Dimensions Tab |
| Cable Termination | Finished Conductors |
| Cable Seal | Epoxy; Conformal |
| Mechanical | |
|---|---|
| Material | Stainless Steel |
| Finish | Natural |
| Safe Overload | Compression 150% FSO Side Load 30% FSO |
| Ultimate Overload | Compression 300% FSO Side Load: 100% FSO |
| Deflection | See Dimensions Tab |
| Weight | See Dimensions Tab |
| Environmental | |
|---|---|
| Temperature, Operating | 0 to +400 °F (-18 to +204°C) |
| Temperature, Compensated | 75 to +400 °F (-24 to +204°C) |
| Temperature, Storage | -40 to +400 °F (-40 to +204°C) |
| Temperature Effects | Zero < 0.003% FSO/°F < 0.0054% FSO/°C |
| Temperature Effects | Output < 0.0008% of Rdg./°F < 0.0014% Rdg./°C |
| Sealing | IP67; Multi-redundant; Limited Immersion Tolerance |

| CAPACITY (KG) | H | L1 | L2 | L3 | L4 | L5 | W1 | W2 | T (THREAD) | DEFLECT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10, 20, 50, 90 | 2.48 | 4.64 | 0.30 | 0.75 | 1.26 | 4.35 | 1.00 | 0.50 | M6 X 1.0 (12MM DP) | 0.015 | 2.0 |

| Datasheets | YA3-M-D2-DS.00pdf.pdf |
| Step Files | YA3-M-3KG-to-90KG-D2-X1-STEP.step |
