YA6-M Series

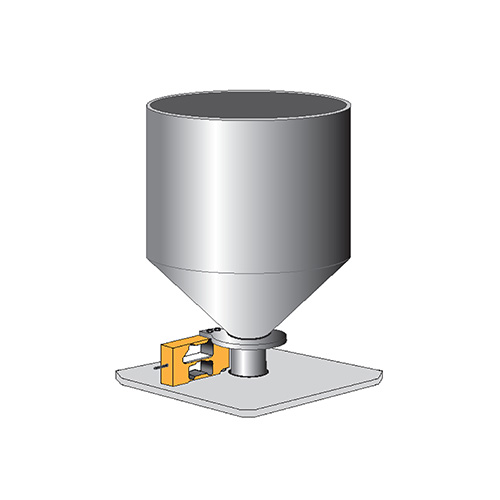

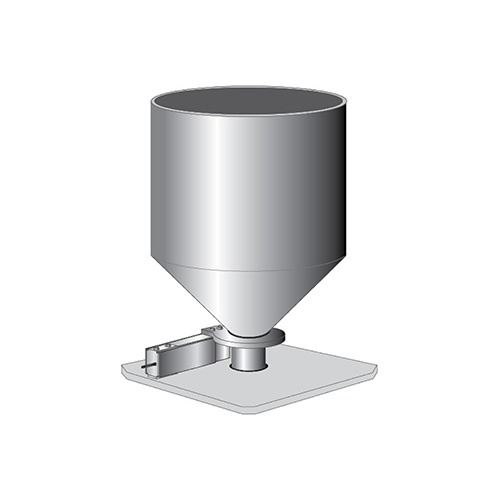

The YA6-M Series is a moment compensated load cell constructed of transducer-quality aluminum alloy. YA6-M is designed to accurately measure tension and compression forces for applications ranging from 0-10 KG to 0-90 KG. The YA6-M Series features a unique three-beam guided cantilever design that readily tolerates moments induced by angular, eccentric, or off-center loading, with minimal sensitivity to these extraneous loads, producing excellent performance. The three-beam design also yields better performance for temperature gradients in varing temperature environments. The YA6-M Series is specifically designed to reject the undesirable measurement effects of off-center loading, a requirement for platform scale applications. The load cell is environmentally sealed to IP67 (limited immersion) by virtue of proprietary multi-redundant barriers uniquely integrated to protect all internal components. The integral premium instrumentation grade cable features a durable PVC jacket over a tinned-copper braided shield for superior mechanical protection and for minimizing the unwanted electrical effects of RFI and EMI. The attributes of the YA6-M Series make it convenient for weighing bins and hoppers. The YA6-M Series is an ideal choice for plastic injection molding hoppers, material handling, packaging, or bagging scale applications where a versatile, high accuracy, moment compensated load cell solution is required.
